How to Conduct ASTM D1709 Dart Impact Test A Complete Guide by Pacorr

Pacorr stands at the forefront of delivering cutting-edge testing solutions for the packaging and plastic film industries, ensuring reliability, precision, and compliance with international testing standards. Among its wide range of instruments, the Dart Impact Tester is specifically designed to assess the impact resistance of plastic films and flexible packaging materials. In this guide, we will delve into the ASTM D1709 standard, explain how the dart impact test is performed, and highlight the importance of using a trusted dart impact tester manufacturer like Pacorr.
This article not only explains the testing method step-by-step but also aligns with Google’s E-E-A-T principles—ensuring Experience, Expertise, Authoritativeness, and Trustworthiness in both technical insight and SEO optimization.

Understanding ASTM D1709: Standard Test Method for Impact Resistance

The ASTM D1709 test method evaluates the impact resistance of plastic films by dropping a weighted dart from a specified height onto a clamped film sample. The goal is to determine the energy (in grams or force units) required to cause failure or rupture in 50% of the tested samples. This is commonly referred to as the mean failure energy.
Two procedures are described under this standard:

  •     Method A: Uses a hemispherical dart dropped from a height of 26 inches.
  •     Method B: Uses a dart dropped from one meter with smaller weights.

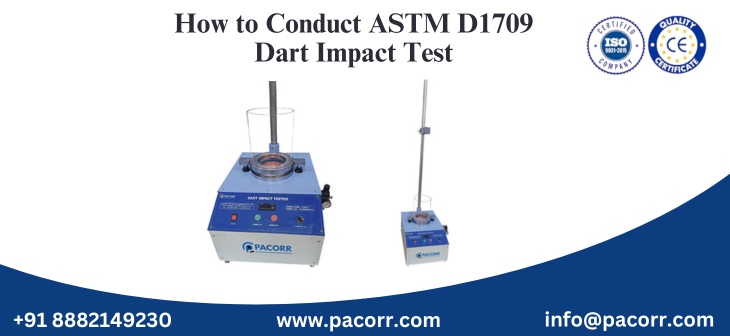

Pacorr’s Dart Impact Tester supports both procedures and is built to provide consistent, repeatable, and highly accurate results in line with ASTM specifications.

Why Dart Impact Testing Is Critical for Plastic Films

Plastic films used in packaging—such as polyethylene, polypropylene, or laminated films—are often subjected to dynamic forces during handling, transport, and storage. Evaluating their impact resistance is essential to:

  •     Prevent product damage during shipping
  •     Reduce material wastage
  •     Ensure packaging reliability
  •     Maintain brand reputation

Using a high-quality dart impact tester ensures these materials meet mechanical performance expectations before entering the supply chain.

Key Features of Pacorr’s Dart Impact Tester

As a leading dart impact tester manufacturer, Pacorr provides machines that combine industrial durability with advanced testing capabilities. Key features include:

  •     Microprocessor-based control system for precise measurement
  •     Automatic and manual sample clamping for safety and stability
  •     Adjustable drop height for different standards
  •     High-grade dart heads available in multiple sizes
  •     Digital display for real-time test data

Whether you're concerned about dart impact tester price or advanced performance features, Pacorr offers models suitable for both research labs and high-volume production facilities.

Preparation Before Conducting the Test

To ensure accurate results, follow these preparation steps:
1.    Condition the samples: As per ASTM D618, condition the plastic film samples for a minimum of 40 hours at 23°C and 50% relative humidity.
2.    Cut uniform samples: Ensure the film is free from wrinkles, folds, or defects.
3.    Select the test method: Choose either Method A or Method B depending on material type and application requirements.
4.    Clean and calibrate the machine: Remove dust and debris from the dart, clamp, and base. Calibrate the drop height and balance the dart as needed.

Step-by-Step Guide to Conduct ASTM D1709 Dart Impact Test

Step 1: Machine Setup

  •     Power on the Pacorr Dart Impact Tester.
  •     Set the drop height according to Method A (26 inches) or Method B (1 meter).
  •     Select the dart head as per the method:
  •    Method A: 38 mm diameter hemispherical head.
  •    Method B: 50 mm diameter head.
  •     Load initial weight onto the dart.

Step 2: Mount the Film Sample

  •     Place the plastic film sample over the clamping ring.
  •     Ensure the sample is flat, centered, and free from tension.
  •     Secure it using the pneumatic or manual clamp (based on your model).


Step 3: Conduct the Test

  •     Press the release button or foot switch to drop the dart.
  •     The dart impacts the center of the film, and you observe whether the sample ruptures.

Step 4: Record and Repeat

  •     Record if the sample passed or failed.
  •     Adjust the dart weight based on whether the sample ruptured:
  •     Increase weight if the film did not rupture.
  •     Decrease weight if the film ruptured.
  •     Repeat the process for 20 samples.

Step 5: Calculate Results

  •     Use the Bruceton Staircase Method to calculate the mean failure energy.
  •     Results are reported in grams or equivalent energy values.
  •     Document the conditions, number of samples, and failure percentage.

Best Practices for Reliable Testing

To ensure valid results and repeatability:

  •     Always test in a draft-free and controlled temperature environment.
  •     Use samples cut from multiple areas of the film roll to eliminate bias.
  •     Regularly calibrate the machine and inspect dart heads for wear or deformation.
  •     Follow consistent drop timing and sample handling techniques.

Applications of Dart Impact Testing

Industries that benefit from this test include:

  •     Food and beverage packaging
  •     Pharmaceutical blister packs
  •     Agricultural films and liners
  •     Industrial shipping pouches
  •     Medical device packaging

Manufacturers use this test not only during quality control but also during R&D phases to evaluate new material blends or layered films.

Dart Impact Tester Price and Buying Considerations

When evaluating the dart impact tester price, it's crucial to consider the following:
  •     Automation level: Manual models cost less but require more operator skill.
  •     Data logging capability: Advanced machines come with USB or printer output.
  •     Compliance: Always ensure the machine complies with ASTM D1709 and other relevant standards.
  •     Support and warranty: Choose a trusted dart impact tester manufacturer like Pacorr for technical support, AMC plans, and extended warranties.

Pacorr offers competitive pricing with no compromise on build quality or testing accuracy, making it a top choice for global industries.

Benefits of Choosing Pacorr as Your Dart Impact Tester Manufacturer

  •     Trusted by top industry brands across packaging, plastics, and R&D labs.
  •     Engineered in compliance with ASTM, ISO, and BIS standards.
  •     Robust construction to withstand continuous usage.
  •     User-friendly interface with real-time analytics.
  •     Flexible pricing with tailored features to match your needs.

Pacorr's commitment to innovation, customer satisfaction, and technical excellence has made it a preferred dart impact tester manufacturer in India and international markets.

Conclusion

Pacorr’s Dart Impact Tester is an essential tool for any packaging, polymer, or plastic film manufacturer aiming to ensure product durability and compliance. By following the ASTM D1709 Dart Impact Test procedure, businesses can reliably measure the mechanical strength of films and proactively prevent failures in real-world scenarios.
Whether you are comparing dart impact tester price or looking for a reliable testing partner, Pacorr delivers the experience, expertise, and trust you need. Invest in precision. Choose Pacorr.
