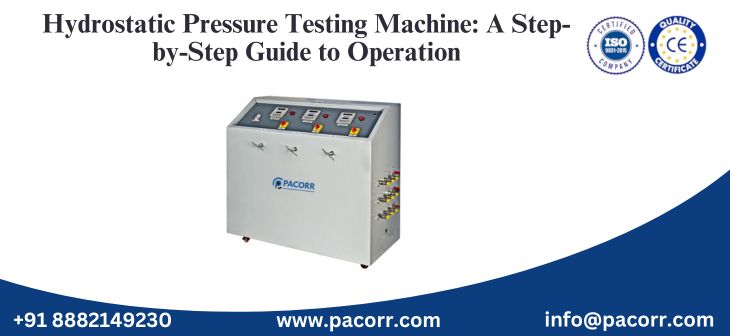

Hydrostatic Pressure Testing Machine: A Step-by-Step Guide to Operation

Pacorr’s Hydrostatic Pressure Testing Machine is a precision instrument designed to evaluate the strength and durability of pressure vessels, pipes, and containers under controlled conditions. This machine is widely used in industries that require accurate testing of the material’s ability to withstand internal pressure without failing. Whether you're working in the manufacturing of pipes, tanks, or pressure-sensitive equipment, understanding how to operate the Hydrostatic Pressure Testing Machine effectively is critical for ensuring safety, quality, and performance. In this step-by-step guide, we will explore how to use this machine correctly, from setup to testing and maintenance.

What is a Hydrostatic Pressure Testing Machine?

Before diving into the steps, it's essential to understand what a Hydrostatic Pressure Testing Machine is and its role. This machine uses water or another fluid to apply pressure to a container or pipeline. The objective is to ensure that the equipment can handle the specific internal pressure required for its intended use. Typically used in industries such as oil and gas, automotive, and construction, it is crucial for manufacturers to perform hydrostatic testing to prevent failures during operational conditions.

Key Features of Pacorr's Hydrostatic Pressure Testing Machine:

• High-Precision Control: The machine is designed to offer accurate pressure control, ensuring that all tests are reliable and repeatable.
• Automatic Pressure Regulation: This feature helps in maintaining a consistent pressure level during the test cycle.
• User-Friendly Interface: The machine is equipped with a digital interface that allows easy input and monitoring of parameters like pressure, time, and temperature.
• Safety Features: Includes built-in pressure relief valves and safety sensors to prevent over-pressurization.

Step 1: Setup the Hydrostatic Pressure Testing Machine

The first step in operating Pacorr’s Hydrostatic Pressure Testing Machine is proper setup. Follow these instructions to ensure that the machine is ready for operation:

1. Place the Test Sample Correctly: Begin by positioning the container or pipe that you want to test into the testing chamber. Ensure that the item is securely placed, as an unstable sample could lead to inaccurate results or failure during testing.
2. Connect the Pressure Source: The machine is designed to work with either water or oil as the testing medium. Connect the pressure source (typically a water reservoir) to the machine’s input valve. Make sure all connections are tight and secure to prevent leakage.
3. Adjust the Temperature (if necessary): If your test requires specific temperature conditions, adjust the water or fluid temperature using the machine’s built-in heater.
4. Safety Checks: Before starting the test, ensure that all safety features, including the pressure relief valve, are functioning correctly. Double-check the safety guards and emergency shutdown systems.

Step 2: Set the Test Parameters

After ensuring that the machine is set up properly, it's time to configure the test parameters. This includes setting the desired pressure and time for the test. Pacorr’s Hydrostatic Pressure Testing Machine allows you to input specific pressure levels and test durations to meet the requirements of the material being tested.

1. Set Pressure Levels: Enter the desired pressure on the control panel. Depending on the type of material being tested (for instance, PVC, steel, or plastic), you may need to adjust the pressure levels. The test typically involves applying internal pressure up to a pre-determined value that exceeds the material’s normal operating pressure.
2. Time Settings: Set the test duration according to the industry standards or your specific testing requirements. The duration could vary depending on the type of test being performed. In general, pressure is applied for a fixed period, typically 30 minutes to 1 hour.
3. Test Fluid: Choose the type of test fluid, generally water, and set the system to the appropriate viscosity and pressure.

Step 3: Initiate the Test

Once the machine is set up and the parameters are configured, it’s time to initiate the test:

1. Start the Test Cycle: Press the "Start" button on the control panel to begin the hydrostatic test. The machine will begin applying the specified pressure to the test sample.
2. Monitor Pressure: As the test progresses, monitor the pressure gauge on the machine to ensure the pressure is building up correctly. The system will gradually increase pressure until it reaches the desired set point.
3. Observe for Leaks or Deformations: Keep an eye on the test sample during the procedure. If any leaks or deformations appear, the machine will automatically shut off as a safety precaution. At this point, you can analyze the failure points to determine the integrity of the material.

Step 4: Test Completion and Data Recording

Once the hydrostatic pressure test is complete, follow these steps:

1. Release Pressure: After the test duration has passed or the pressure level has been reached, slowly release the pressure from the system. Be cautious while doing this, as rapid depressurization could affect the integrity of the sample or the machine.
2. Record the Results: The machine will display the final test results, including the maximum pressure reached and any signs of failure in the test sample. Ensure to document the results for future reference and analysis.
3. Test Sample Inspection: Once the pressure has been released, inspect the test sample for any visible signs of failure, such as cracks, deformations, or leaks. This will give a clear indication of how well the sample withstood the pressure.

Step 5: Post-Test Maintenance

Maintaining the Hydrostatic Pressure Tester Machine is vital for ensuring its longevity and consistent performance. After each test, perform these basic maintenance tasks:

1. Clean the Testing Chamber: After every test, remove any debris or water residue from the test chamber. This will prevent rust or corrosion and keep the machine in optimal working condition.
2. Inspect the Pressure Source: Regularly check the pressure source and connecting lines for any wear and tear. Replace any worn-out parts to maintain testing accuracy.
3. Calibrate the Machine: To ensure that the machine continues to deliver accurate results, calibrate it regularly as per the manufacturer’s recommendations.

Conclusion:

Pacorr’s Hydrostatic Pressure Testing Machine is an indispensable tool for testing the strength and durability of materials under pressure. By following the step-by-step guide outlined above, you can ensure the machine operates effectively and produces accurate results every time. Regular setup, testing, and maintenance practices are key to maintaining the longevity and accuracy of the machine. Whether you’re working with pipes, pressure vessels, or tanks, understanding how to use the Hydrostatic Pressure Testing Machine will help ensure that your products meet the necessary safety and quality standards.

FAQ:
1.    How often should I calibrate the Hydrostatic Pressure Testing Machine?
Calibration should be performed regularly, ideally every six months or after a significant number of tests.
2.    Can I use any fluid for hydrostatic testing?
Typically, water or a specially designed test fluid is used, as they provide the necessary pressure conditions without damaging the equipment.
3.    What happens if the test sample fails during the pressure test?
If the sample fails during the test, the machine will automatically stop, and the failure point will be recorded for analysis. This helps identify weaknesses in the material.
