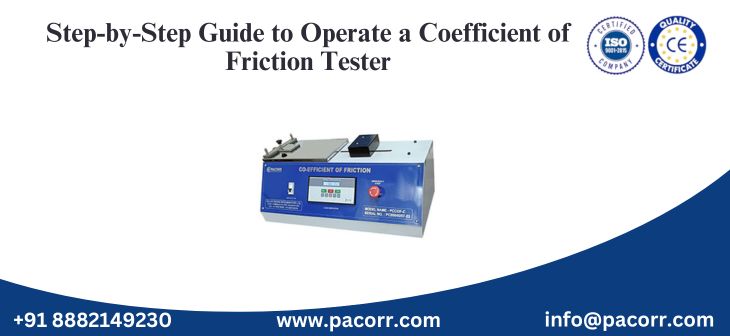

Step-by-Step Guide to Operate a Coefficient of Friction Tester

Pacorr Coefficient of Friction Tester is an advanced quality control device used in the packaging, plastic film, and flexible material industries to accurately measure the static and kinetic friction of surfaces. Ensuring smooth functionality in packaging lines and proper slip resistance in films and laminated materials, the Coefficient of Friction (COF) Tester plays a vital role in improving product performance and preventing material mishandling.

By precisely determining the frictional properties of packaging substrates, Pacorr’s Coefficient of Friction Tester helps manufacturers maintain consistent production quality. This step-by-step guide will walk you through the complete process of setting up and operating the machine while ensuring data accuracy and safety protocols.

Understanding the Coefficient of Friction Tester

The Coefficient of Friction Tester is engineered to measure both static friction (the force required to initiate movement) and kinetic friction (the force required to maintain movement) between two surfaces. These readings are crucial for packaging manufacturers, especially those working with plastic films, BOPP, PET, paper, laminated sheets, and other flexible substrates.

Key applications include:

• Flexible packaging films
• Paper and board materials
• Laminated packaging
• Labels and tapes
• Foils and coated surfaces

With Pacorr’s friction tester, manufacturers can easily identify variations in film surface behavior during processing, transportation, and end-use, avoiding issues like jamming, uneven sealing, or poor roll unwind.

Major Components of Pacorr’s Coefficient of Friction Tester

Before learning how to operate the equipment, it’s essential to understand its main components:

• Test Platform: The flat horizontal surface where the film specimen is placed.
• Sled (Weight Block): A known-weight block that slides across the test specimen to simulate real friction.
• Drive Mechanism: A motorized unit that pulls the sled at a consistent speed.
• Load Sensor: Measures the pulling force exerted by the sled.
• Digital Display/Touch Panel: Shows the static and kinetic COF values.
• Specimen Clamps: Secure the test film/sample properly.
• USB/RS232 Interface: For data export and reporting.

Preparation Before Starting the COF Test

Proper preparation is vital for getting accurate and repeatable results. Follow these initial steps before running the test:

1. Clean the Surface and Sled
   Ensure both the test platform and the sled are clean and free from dust, oil, or debris that may affect test accuracy.
2. Calibrate the Device (If Needed)
   Perform calibration using standard weights or calibration foils if the device hasn’t been used recently. Most advanced Pacorr models offer digital auto-calibration features.
3. Condition the Sample
   Store the test specimens in standard environmental conditions (typically 23°C and 50% RH) for at least 24 hours before testing. This helps eliminate variations due to moisture or temperature.
4. Cut the Specimens Precisely
   Prepare the sample as per standard size, typically 63 mm x 100 mm, ensuring no wrinkles or folds. Precision in sample preparation ensures accurate readings.

Step-by-Step Guide to Operate the Coefficient of Friction Tester

Step 1: Power On the Machine
Switch on the main power. Wait for the system to initialize and check the status screen for any errors.

Step 2: Select the Test Mode
Most COF testers allow users to select between:

• Static COF test
• Kinetic COF test
• Combined COF test (static + kinetic)

Choose the appropriate test based on your application.

Step 3: Mount the Test Sample
Secure one test specimen on the fixed platform using adhesive tape or clamps. Ensure the surface is smooth and lies flat. Then, attach the second piece to the underside of the sled.

Step 4: Place the Sled on the Sample
Carefully place the sled on the mounted specimen so it contacts the surface properly. Ensure the sled’s hook is aligned with the load cell.

Step 5: Start the Test
Press the ‘Start’ button or use the touchscreen panel to initiate the test. The sled will begin to move at a constant speed (commonly 150 mm/min). The force required to start and maintain motion is recorded.

Step 6: Observe and Record Results
The digital display will show:

• Static COF: The maximum force required to initiate movement.
• Kinetic COF: The average force required to maintain sliding.

Data can be saved automatically or manually noted for quality control documentation.

Step 7: Export and Analyze the Data
Connect the USB or data port to a computer if digital documentation is required. Most systems allow CSV export for further analysis.

Step 8: Repeat for Accuracy
It’s recommended to perform at least 5 tests per sample and calculate the average for consistency.

Post-Test Procedures and Best Practices

• Clean the Sled and Platform After Use: Regular cleaning helps avoid contamination and maintains machine lifespan.
• Store the Equipment in a Dust-Free Environment: Always cover the tester when not in use.
• Schedule Routine Maintenance: Annual calibration and inspection ensure the instrument performs reliably.

Tips to Ensure Accurate Coefficient of Friction Measurements

1. Avoid Finger Contact: Touching the test area can deposit oils and distort results.
2. Consistent Sample Placement: Always use a guide or alignment tool for repeatable specimen positioning.
3. Run Control Samples Regularly: Helps verify that the device is functioning within specification.
4. Monitor Environmental Conditions: Temperature and humidity can significantly affect friction values.

Common Standards Followed in COF Testing

Pacorr’s Coefficient of Friction Tester complies with several national and international standards, including:

• ASTM D1894
• ISO 8295
• TAPPI T816
• DIN 53375

These standards ensure test methods are consistent and results are reliable across labs and industries.

Industries Benefiting from COF Testing with Pacorr

• Plastic Film Manufacturers: Monitor slip characteristics for packaging performance.
• Printing Industry: Avoid registration issues caused by excess or insufficient film slip.
• Flexible Packaging Plants: Ensure seal integrity and smooth operation on FFS (Form Fill Seal) machines.
• Paper and Board Industry: Maintain handling quality and reduce misfeed during high-speed operations.

Why Choose Pacorr’s Coefficient of Friction Tester?

Pacorr stands out in the testing equipment industry due to:

• User-friendly interface with high-resolution digital output
• Precision load sensors ensuring accurate COF readings
• Durable construction suitable for industrial use
• Support for multiple test standards
• Rapid testing cycle and automated operations

Whether you're in quality assurance, R&D, or production, using Pacorr’s COF tester adds reliability and consistency to your friction analysis process.

Conclusion

Operating a Coefficient of Friction Tester correctly is essential for maintaining high-quality standards in packaging, films, and laminated materials. Pacorr offers a reliable and precise solution with its user-friendly, accurate, and standards-compliant equipment. By following the step-by-step operating guide outlined above, manufacturers can ensure consistent performance, reduce product rejections, and enhance overall production quality.

Investing in the right testing instruments and knowing how to operate them effectively is key to achieving operational excellence—and Pacorr helps you do just that.
