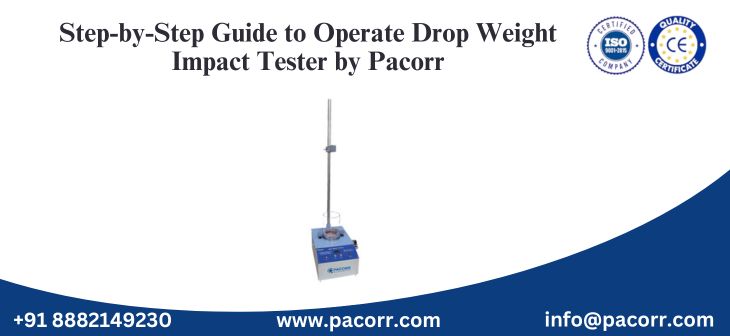

Step-by-Step Guide to Operate Drop Weight Impact Tester by Pacorr

Pacorr’s Drop Weight Impact Tester is a crucial testing instrument designed to determine the impact resistance and strength of plastic films, packaging materials, and other substrates. This equipment simulates the sudden mechanical shock that a material may encounter during handling, shipping, or accidental drops. In the packaging and materials testing industry, accurate impact resistance evaluation is essential to avoid product failures and ensure compliance with industry standards. With Pacorr’s Drop Weight Impact Tester, manufacturers can confidently assess the durability of their materials in a controlled and repeatable environment.

Operating this device effectively requires an understanding of its components, calibration process, test setup, safety protocols, and result analysis. This guide provides a comprehensive, step-by-step explanation of how to use Pacorr’s Drop Weight Impact Tester efficiently for optimal results.

What is a Drop Weight Impact Tester?

A Drop Weight Impact Tester is a precision instrument that evaluates the energy required to break or deform a test specimen when struck by a falling weight from a specified height. This method is commonly used in industries dealing with plastic films, PET containers, sheet materials, laminates, and other packaging components.

The tester comprises a vertical frame, adjustable drop height mechanism, a guided weight (or striker), a specimen holder, and a control panel for adjustments. Pacorr’s Drop Weight Impact Tester is engineered to deliver consistent and reliable test results across various industrial applications.

Keywords: Drop Weight Impact Tester, plastic film impact testing, impact resistance tester, packaging material testing, drop test equipment, Pacorr impact tester, PET container testing machine.

Key Features of Pacorr’s Drop Weight Impact Tester

Before diving into the operational procedure, it is essential to understand the major features that make this instrument highly effective and reliable:

• Adjustable Drop Height: Allows users to test the specimen under various energy levels by modifying the height.
• Precision Weight Mechanism: Facilitates controlled and repeatable impact using standard weights.
• Strong Test Platform: Ensures a rigid base for accurate impact transfer.
• Digital Display and Control Panel: Helps users monitor and adjust parameters easily.
• Safety Shielding and Locking Mechanism: Prevents accidental injury during testing operations.

These features together enhance the overall performance, repeatability, and safety of the Drop Weight Impact Tester in laboratory or production environments.

Applications of Drop Weight Impact Testing

Pacorr’s Drop Weight Impact Tester serves a wide array of industrial segments, including:

• Plastic Packaging Industry – To determine how much impact a film can tolerate before tearing.
• PET Bottle Manufacturing – To evaluate the durability of containers during drops.
• Automotive and Aerospace Sectors – For material strength validation.
• Pharmaceutical Packaging – Ensures the protection of delicate products during logistics.

Regular impact resistance testing using this machine ensures products are robust enough to endure physical stress without functional or structural damage.

Step-by-Step Guide to Operate Drop Weight Impact Tester

Step 1: Initial Setup and Calibration

Begin by placing the Drop Weight Impact Tester on a level surface in a vibration-free environment. Make sure the instrument is securely bolted or stabilized to prevent movement during testing.

Calibration Process:

• Power on the device.
• Set the machine to its default state using the control panel.
• Check the alignment of the weight guide rod to ensure smooth vertical motion.
• Calibrate the height sensor (if applicable) and ensure the drop height aligns with the required impact energy.
• Place a standard calibration sample to verify accuracy before proceeding with actual test specimens.

Step 2: Preparing the Test Specimen

Choose a sample according to the testing standard you're following (ASTM D1709, ISO 7765-1, etc.). Cut the material with appropriate dimensions as specified.

• Ensure the test specimen is clean and free of any wrinkles or deformation.
• Mount the specimen on the holding fixture securely.
• For films, clamp the sample across the circular opening without stretching it.

Step 3: Selecting the Drop Weight and Height

Select a weight according to the required impact energy. The impact energy is calculated as:

Impact Energy (J) = Weight (kg) × Gravity (9.81 m/s²) × Height (m)

Adjust the drop height using the vertical scale or control mechanism. Pacorr’s Drop Weight Impact Tester offers adjustable settings to test under different conditions depending on material requirements.

Step 4: Safety Checks Before Operation

Safety is a priority when operating impact testing machines. Perform the following checks:

• Confirm that the drop weight is securely latched before starting the test.
• Engage all safety locks and shields around the drop area.
• Ensure that the operator and others nearby are at a safe distance.
• Do not place any objects other than the specimen within the test area.

Step 5: Performing the Test

Once everything is set, proceed with the impact test:

• Press the release button or pull the release lever to drop the weight.
• Observe whether the test specimen breaks, tears, or deforms.
• Record the result: did the specimen pass or fail the impact?
• Some models may have a built-in sensor that logs the result digitally.

Repeat the process with multiple specimens to ensure statistical consistency.

Step 6: Evaluating the Results

Impact test results are typically presented as:

• Pass/Fail Result: Whether the material survived the impact.
• Break Energy: The minimum energy required to cause failure.
• Deformation Metrics: If measured visually or using sensors.

These insights allow manufacturers to refine packaging design, choose better material compositions, or comply with global standards.

Best Practices for Consistent Testing

• Always run a trial with a control sample before beginning the main tests.
• Keep the drop weight guide rod clean and lubricated.
• Replace damaged or worn test fixtures periodically.
• Use consistent sample preparation techniques to minimize variation.

Store weights and parts in a clean, dry location.

Maintenance Tips for Longevity of Drop Weight Impact Tester

To ensure accurate and long-term performance, regular maintenance is essential:

• Check bolts, screws, and moving components for looseness or wear.
• Inspect the weight latch system for any malfunction.
• Clean the base platform and striker after each session.
• Calibrate the height scale and sensors quarterly.

Pacorr’s impact testers are built for durability, but routine care enhances reliability and operational life.

Why Choose Pacorr’s Drop Weight Impact Tester

Pacorr is a trusted name in testing equipment, known for engineering robust and accurate testing instruments. Their Drop Weight Impact Tester is designed with industrial precision, ease of use, and testing consistency in mind. Whether you're a packaging manufacturer, plastic film converter, or PET bottle producer, this device is an essential tool for ensuring product durability and market readiness.

Conclusion: Empowering Quality with Pacorr’s Drop Weight Impact Tester

In industries where material performance under impact is crucial, Pacorr’s Drop Weight Impact Tester delivers consistent and reliable results. From setup and calibration to testing and evaluation, this machine simplifies a critical aspect of quality assurance. By following the step-by-step operating procedure and maintenance guidelines, users can ensure repeatable testing performance and maintain high product standards.

If you're looking to strengthen your packaging quality assurance or comply with international impact resistance benchmarks, Pacorr's Drop Weight Impact Tester is a proven and dependable solution.
