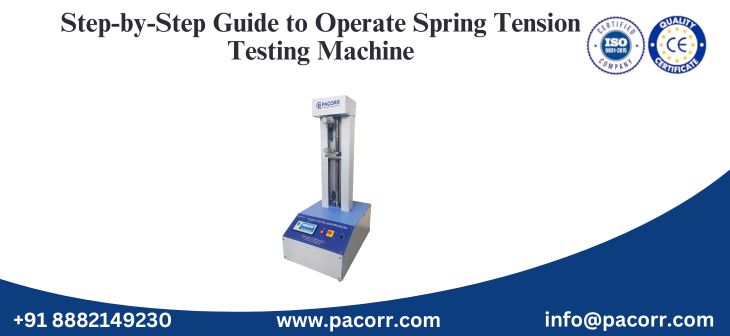

Step-by-Step Guide to Operate Spring Tension Testing Machine

Pacorr offers a high-performance Spring Tension Testing Machine, specially designed to test the mechanical strength, elasticity, and load capacity of various springs used in industrial applications. This machine is widely used across industries like automotive, electronics, aerospace, packaging, and mechanical engineering to ensure that springs perform under stress as expected. A proper understanding of how to operate this machine is essential to obtain accurate, repeatable results.

In this blog, we will provide a comprehensive, step-by-step guide on how to operate Pacorr’s Spring Tension Testing Machine. Whether you are a quality inspector, laboratory technician, or production engineer, this guide will help you ensure reliable testing procedures that comply with international quality standards.

Understanding the Importance of Spring Tension Testing

Before diving into the operation procedure, it's important to understand the relevance of spring testing. Springs play a crucial role in absorbing shocks, storing energy, and maintaining force in mechanical systems. Any defect in a spring can lead to product failure, increased downtime, or compromised safety.

A Spring Tension Testing Machine is used to test:

• Tension (pull) force of extension springs
• Compression (push) force of compression springs
• Load at specified deflection
• Maximum load-bearing capacity

Pacorr’s machine offers digital readouts, precise force application, and high repeatability—making it an ideal choice for both R&D and routine quality testing.

Key Features of Pacorr’s Spring Tension Testing Machine

1. Digital Load Display: For precise measurement of force applied during testing.
2. Adjustable Grips and Fixtures: Compatible with different spring sizes and types.
3. Motorized or Manual Operation: Depending on model, allowing flexibility for users.
4. Load Capacity Options: Available in multiple ranges for different spring types.
5. Built-in Safety Features: To avoid overloading and ensure user protection.

Pre-Operation Checklist

Before starting the testing procedure, ensure the following conditions are met:

1. Machine Calibration: Confirm that the machine is calibrated according to the manufacturer’s guidelines. Calibration ensures the accuracy of results.
2. Power Supply: Ensure the machine is connected to a stable power source if it is a motorized version.
3. Clean Fixtures: Verify that the clamps, grips, and loading platforms are clean and free of any dust or debris.
4. Inspect the Specimen: Check the spring for visible defects or deformations before testing.
5. Set Parameters: Input required test parameters such as test speed, preload, and maximum load on the control panel.

Step-by-Step Operating Procedure for Spring Tension Testing Machine

Step 1: Turn On the Machine

• Use the main switch to power up the Spring Tension Testing Machine.
• Wait for the digital display and system interface to initialize.

Step 2: Select the Appropriate Fixture

• Depending on whether you are testing compression or extension springs, select the right fixture.
• Mount the fixture securely on the machine.

Step 3: Place the Spring Specimen

• Carefully mount the spring between the upper and lower grips.
• For tension springs: Attach both ends to the hooks or clamps.
• For compression springs: Place it vertically between two flat plates.

Step 4: Set Testing Parameters

• Use the digital interface to set test parameters:
  1. Test Type: Tension or compression
  2. Crosshead Speed: Depending on material type (e.g., 5 mm/min for fine springs)
  3. Preload or Zero Load: Set if required
  4. Break Load or Stop Point: Define the maximum force or elongation limit

Step 5: Start the Test

• Press the ‘Start’ or ‘Test’ button to begin.
• The crosshead will move and apply force to the spring.
• Monitor real-time values of load, displacement, and elongation on the digital screen.

Step 6: Observe the Test Progress

• Ensure smooth movement of the spring without misalignment.
• The graph or load vs. extension data will be generated automatically on screen or software.

Step 7: Test Completion

• Once the machine reaches the pre-defined endpoint, it will automatically stop.
• The final values (peak load, extension, deflection, etc.) will be displayed.

Step 8: Remove the Specimen

• Turn off the crosshead movement.
• Carefully unmount the spring from the grips to avoid injury.

Step 9: Save or Export Data

• Use the integrated software (if available) to save test reports in PDF or Excel format.
• Reports can include graphs, values, and batch ID.

Post-Operation Guidelines

1. Switch Off the Machine: Power down safely using the main switch.
2. Clean the Machine: Remove any debris and wipe down fixtures.
3. Record Maintenance: Note the test date, operator name, and results in the logbook.
4. Check for Wear and Tear: Inspect fixtures and grips for any signs of damage.

Best Practices for Accurate Testing

• Repeat Tests: Perform at least three repetitions for each sample to get an average.
• Use Correct Fixtures: Improper gripping can lead to inaccurate results or damage.
• Maintain Alignment: Misalignment between spring and grip leads to erroneous results.

Avoid Overloading: Follow the load range specified for your machine model.

Applications of Spring Tension Testing Machine

The Spring Tension Testing Machine by Pacorr is used in a variety of industrial segments:

• Automotive: Seat springs, clutch springs, suspension components
• Electronics: Micro springs used in connectors and contacts
• Industrial Machinery: Load-bearing springs in actuators and relays
• Consumer Goods: Pens, mechanical tools, and measuring tapes
• Aerospace: Precision coil springs used in navigation systems

Benefits of Using Pacorr’s Spring Tension Testing Machine

• High Accuracy and Precision: Ensures consistent quality in production
• User-Friendly Operation: Simple digital interface with customizable settings
• Durability: Built for rugged use in industrial environments
• Versatility: Supports both compression and tension tests
• Compliance Ready: Suitable for ISO, ASTM, and BIS testing standards

Conclusion

Pacorr’s Spring Tension Testing Machine is an essential tool for industries that rely on spring performance for product safety and functionality. By following the step-by-step guide provided above, users can ensure accurate testing outcomes, maintain compliance with global quality standards, and prevent mechanical failures in end-use applications. The robust construction, digital control system, and precision force measurement make this machine a must-have for every quality testing lab.

Looking to enhance your quality assurance process?
Get in touch with Pacorr to learn more about the Spring Tension Testing Machine and how it can fit your application-specific needs.
