What Is A Profile Projector And How Does It Work?

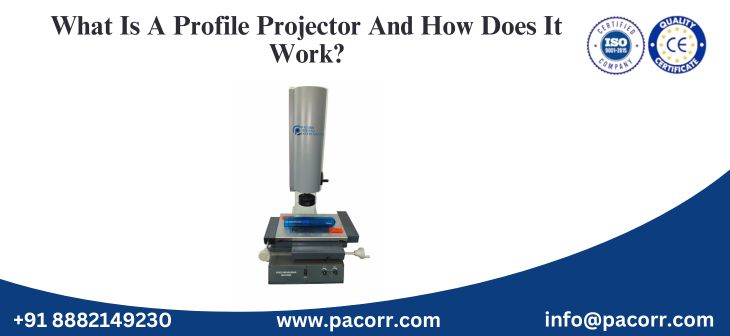

Pacorr introduces an advanced Profile Projector designed to bring precision and efficiency to the dimensional inspection of small components. A Profile Projector, also known as an optical comparator, is a non-contact measurement system that projects the magnified silhouette of a part onto a screen. It allows manufacturers and quality control professionals to compare the object's profile against prescribed dimensional standards. Pacorr’s Profile Projector is a critical instrument for industries requiring tight tolerance verification, such as automotive, aerospace, plastic molding, electronics, and precision engineering.

Using Pacorr’s Profile Projector, engineers can conduct profile measurement, angle verification, linear dimension checking, and more without the limitations or inaccuracies often found in manual tools. This optical device provides high-accuracy measurement with magnification, making it an indispensable solution for production lines and metrology labs.

Understanding What a Profile Projector Is

A Profile Projector is a metrological instrument used to inspect the physical dimensions and geometry of components. It works by casting a magnified shadow of an object onto a projection screen using a light source and optical system. This shadow, or profile, can then be measured or compared against standard drawings or digital overlays.

Pacorr’s model is crafted to meet industry-grade measurement standards and supports both horizontal and vertical projection types, catering to diverse application needs. Unlike conventional tools such as calipers or micrometers, the Profile Projector eliminates human error through its enhanced visual interface and advanced optical magnification.

How a Profile Projector Works Step by Step

To ensure proper understanding, here is a detailed step-by-step guide on how the Pacorr Profile Projector operates:

1. Component Placement:
The part to be inspected is placed securely on the projector's stage. The stage is often equipped with micrometer-driven slides that allow fine positioning in the X and Y axes.

2. Light Projection:
A light source located beneath or behind the part illuminates it. Depending on the model, the lighting may come from different directions to emphasize contours and edges.

3. Magnification Lenses:
The image of the part’s silhouette is passed through a precision magnification lens, usually available in multiple levels (10x, 20x, 50x, 100x). This allows detailed inspection of small features.

4. Projection Screen Display:
The magnified shadow is displayed on a ground-glass projection screen. Grid overlays, digital readouts, and comparison charts help the operator assess whether the part is within tolerance limits.

5. Measurement and Evaluation:
With integrated measurement tools such as digital protractors, overlay charts, and coordinate tracking, users can measure lengths, angles, radii, and shapes accurately. Pacorr’s systems may also include software for digital measurement and data recording.

Key Features of Pacorr’s Profile Projector

1. High-Precision Magnification:
With premium-grade optics and a variety of magnification levels, Pacorr’s Profile Projector provides unmatched clarity and accuracy.

2. Digital Readouts and Data Interface:
Integrated DRO systems allow direct measurement readings, which can be stored and exported for traceability and analysis.

3. Adjustable Stage Movement:
The micrometric adjustable XY-stage ensures exact positioning of the object under inspection, essential for repeatability and consistency.

4. Multi-Angle Lighting:
Dual or ring illumination helps detect surface imperfections, edges, and contours more effectively, aiding accurate measurement of complex geometries.

5. Rugged Build and Ergonomic Design:
Pacorr ensures that the projector is constructed with robust materials suited for long-term usage in industrial settings. User-friendly knobs, displays, and screens make it easy to operate even during extended inspection cycles.

Applications of Pacorr Profile Projector Across Industries

1. Automotive Industry:
Used for inspecting gears, shafts, valves, and other high-tolerance parts where dimensions and geometry directly affect functionality.

2. Aerospace Engineering:
Crucial for measuring turbine blades, nozzles, and precision assemblies to ensure safety and compliance with airworthiness standards.

3. Plastic Molding and Injection Industries:
Used to measure plastic component profiles to check for shrinkage, warping, or incorrect molding dimensions.

4. Electronic Components:
Ideal for inspecting PCB boards, connectors, and microelectronic parts where non-contact measurement is required.

5. Tool and Die Manufacturing:
Ensures that cutting tools, dies, and molds are manufactured to exact dimensional specifications.

Advantages of Using a Profile Projector

1. Non-Contact Measurement:
As there’s no physical contact with the component, the chances of deformation or damage are eliminated—perfect for delicate parts.

2. Quick Visual Comparison:
Operators can easily compare component silhouettes to standard profiles or blueprints directly on the projection screen.

3. High Repeatability:
By eliminating subjective errors, the Profile Projector delivers consistent results across multiple evaluations and operators.

4. Versatile Functionality:
From simple linear measurement to complex profile and angular checks, Pacorr’s Profile Projector handles it all with ease.

5. Cost-Effective Quality Control:
When compared with more complex 3D CMM machines, a Profile Projector offers an affordable and efficient quality assurance solution.

Types of Measurements Possible With Pacorr Profile Projector

1. Linear Dimensions:
Measure lengths and widths using grid screens or DRO systems.

2. Angular Measurements:
Assess taper angles, chamfers, and bevels using precision angle scales or digital goniometers.

3. Radius and Curvature:
Inspect arc radii, fillets, and rounded edges precisely, critical for tools and machined parts.

4. Thread Profiles:
Useful in checking the pitch, lead angle, and profile of screw threads.

5. Flatness and Symmetry:
Compare parts against reference overlays to ensure uniformity in shape and design.

Why Choose Pacorr Profile Projector Over Others

Pacorr has built a reputation for delivering precision testing equipment tailored for industrial excellence. Their Profile Projector stands out due to:

• Superior Optical Quality: Precision-ground lenses ensure distortion-free magnification.
• User-Friendly Operation: Designed for ease of use even by semi-skilled personnel.
• Durability and Consistency: Long-lasting performance with minimal calibration drift.
• Compliance-Ready Measurement: Supports adherence to ISO, ASTM, and other dimensional standards.

Pacorr’s Profile Projector provides an edge to quality control departments aiming for cost-effective dimensional inspection without compromising on accuracy or reliability.

Conclusion

Pacorr’s Profile Projector is a robust and accurate solution for dimensional measurement and visual inspection in critical industries. By offering non-contact, magnified profile views of manufactured parts, it enables engineers to assess product quality efficiently. Whether it’s ensuring that gear teeth align with design expectations or validating micro-sized plastic parts, Pacorr’s Profile Projector proves to be a vital quality control tool. With its advanced optics, precision measurement features, and industrial-grade durability, it elevates your inspection capabilities while enhancing compliance and trust in your product quality.
