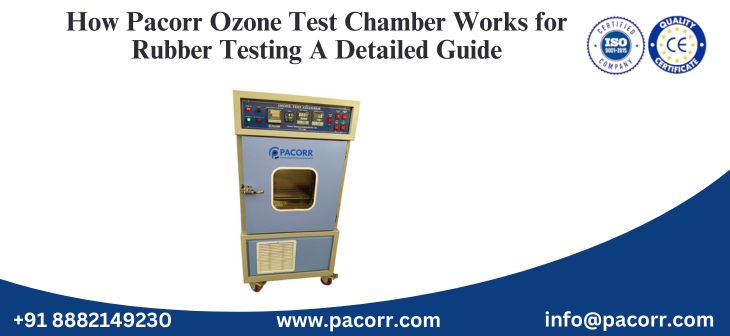

How Pacorr Ozone Test Chamber Works for Rubber Testing: A Detailed Guide

Pacorr provides advanced ozone test chamber solutions that are engineered to simulate accelerated aging effects caused by ozone exposure, a key factor in rubber material degradation. For industries that manufacture automotive parts, seals, gaskets, or tires, ensuring that rubber components can withstand ozone attack is essential. Ozone in the atmosphere, even at low concentrations, can cause surface cracking, loss of elasticity, and premature failure of rubber-based materials. That is why Pacorr’s ozone test chamber for rubber testing plays a crucial role in predicting the performance and life cycle of such products.
This blog explains how ozone test chambers work, especially in the context of rubber testing, offering deep insights into the mechanism, test procedures, benefits, and industrial applications. If you are in the business of quality assurance or rubber product manufacturing, this guide will help you understand why ozone resistance testing is a non-negotiable process and how Pacorr’s precision equipment ensures accurate and repeatable results.

What Is an Ozone Test Chamber?

An ozone test chamber is a specialized environmental testing instrument used to expose rubber specimens to a controlled atmosphere rich in ozone. The equipment is capable of maintaining specific ozone concentrations, temperature, humidity, and test durations in order to simulate real-world aging effects on rubber components. The purpose of this test is to measure the rubber’s resistance to ozone-induced cracking and degradation over time.

Importance of Ozone Testing for Rubber Products

Rubber materials are often exposed to environmental elements such as heat, UV radiation, and ozone. Among these, ozone is particularly aggressive. Even at very low concentrations (parts per hundred million), ozone can cause surface oxidation, leading to cracking. The ozone test provides predictive data on:

•     Crack formation and propagation
•     Durability of elastomers
•     Suitability for outdoor applications
•     Compliance with global standards such as ASTM D1149, ISO 1431, and more

Industries such as automotive, aerospace, consumer electronics, medical device manufacturing, and construction rely on this data for product development and quality assurance.

Working Principle of Pacorr Ozone Test Chamber for Rubber Testing

Pacorr's ozone test chamber operates on a controlled atmosphere mechanism where rubber samples are subjected to a predefined ozone concentration for a set duration under specific conditions.

1. Ozone Generation and Control System

The chamber uses a UV ozone generator or corona discharge method to produce ozone from oxygen. The generated ozone is then injected into the chamber’s test area. Pacorr’s precision ozone sensors constantly monitor the ozone level to ensure consistency and accuracy.

Key features include:

•     Real-time ozone concentration monitoring
•     Feedback loop systems for stability
•     Adjustable concentration levels (typically 25 to 300 pphm)

2. Specimen Placement and Movement

Rubber specimens are mounted on sample holders which may be static or dynamic (stretched condition) depending on the type of test. The dynamic setup allows the material to be tested under strain, simulating real-life operational stress.

•     Static testing helps observe natural crack development.
•     Dynamic testing stresses the rubber and accelerates failure detection.

3. Environmental Conditioning

The chamber allows control over temperature and humidity, which are critical variables affecting the rate of ozone reaction with rubber.
Typical ranges:

•     Temperature: 20°C to 50°C
•     Humidity: Optional, depending on testing standards
•     Duration: Can range from hours to days

4. Cracking Observation and Evaluation

After exposure, the samples are evaluated for surface cracks, usually under optical microscopes or by visual inspection. Crack size, length, and density are recorded and used to determine ozone resistance.

Types of Rubber Testing with Ozone Chambers

Rubber testing using Pacorr ozone test chambers can include:

•     Accelerated aging tests
•     Crack resistance tests (ASTM D1149)
•     Dynamic strain tests
•     Outdoor suitability simulation
•     Ozone stress testing for elastomeric joints, seals, and boots

Features of Pacorr Ozone Test Chamber

Pacorr designs its ozone test chambers with state-of-the-art features to ensure reliability, repeatability, and accuracy:

•     Digital touchscreen control interface
•     Real-time ozone level display
•     Auto ozone control feedback system
•     High-grade stainless steel inner chamber
•     Programmable test cycles
•     Over-temperature and ozone protection systems

These features allow the user to configure precise environmental conditions and run long-duration tests without interruption.

Benefits of Using Pacorr Ozone Test Chamber for Rubber Testing

1. Enhanced Predictability

By simulating ozone exposure under controlled conditions, manufacturers can predict how rubber materials will perform in outdoor or polluted environments.

2. Product Reliability

Early detection of cracking resistance ensures only high-quality, durable products reach the market.

3. Regulatory Compliance

Meets various international testing standards like ASTM D1149, ISO 1431-1, ensuring global product certification and acceptance.

4. Cost Reduction

Reduces warranty claims and product recalls by ensuring products pass real-life stress simulations before dispatch.

5. Better R&D Decisions

Supports research and development by allowing comparison between different rubber formulations and additives.

Applications Across Industries

Pacorr’s ozone test chamber is widely used in:

•     Automotive industry: Tires, hoses, belts, gaskets
•     Footwear: Rubber soles and components
•     Electrical industry: Cable insulation, rubber covers
•     Healthcare: Rubber gloves and tubing
•     Industrial seals and O-rings: For pipelines and mechanical systems

Each of these products demands resistance to environmental wear, and ozone testing ensures long-term performance integrity.

How to Perform Rubber Testing Using Pacorr Ozone Test Chamber

Here’s a step-by-step outline of the typical testing procedure:
Step 1: Prepare rubber test specimens as per dimensions mentioned in standards (e.g., ASTM D1149).
Step 2: Set up the chamber – configure ozone concentration, temperature, and time duration.
Step 3: Mount the rubber samples on holders. For dynamic testing, stretch the samples to desired elongation levels.
Step 4: Start the ozone generator and ensure stable ozone concentration is achieved.
Step 5: Allow the test to run for the defined duration. Monitor conditions periodically.
Step 6: After the test, remove samples and inspect for crack initiation, size, and propagation.
Step 7: Record observations and compare with benchmarks or standard criteria.

Standards for Ozone Resistance Testing in Rubber

Some of the widely followed test methods include:

•     ASTM D1149 – Standard test method for rubber deterioration – cracking in an ozone-controlled environment
•     ISO 1431-1 – Rubber, vulcanized or thermoplastic – resistance to ozone cracking
•     GB/T 7762 – Chinese standard for ozone resistance

Pacorr’s ozone chambers support testing per these standards with precise control and documentation.

Conclusion

Pacorr’s ozone test chamber for rubber testing is a reliable and powerful solution for assessing the durability and environmental resistance of rubber components. With the increasing demand for quality assurance in automotive, healthcare, and industrial applications, ozone testing has become a critical part of product validation and certification. Pacorr enables manufacturers to maintain global quality standards, reduce costs, and enhance product performance with scientifically backed testing solutions.
For manufacturers, researchers, and quality control engineers looking to future-proof their rubber products, investing in a Pacorr ozone test chamber is not just a compliance step—it’s a strategic quality decision.
