How to Use a Drop Tester: A Complete Guide by Pacorr

Pacorr Drop Tester is a crucial quality assurance instrument that helps manufacturers evaluate the durability of packaging and products during real-world handling, shipping, and storage. It simulates vertical free-fall impacts to assess the strength and structural integrity of packaging materials. When used correctly, this machine plays a key role in reducing product damage, improving customer satisfaction, and ensuring compliance with international testing standards.

What is a Drop Tester

A drop tester is a mechanical device designed to test the impact resistance of packaging or products by dropping them from a specified height onto a solid platform. The purpose of this test is to replicate the type of shocks and impacts a product might experience during shipping or handling.
Pacorr offers advanced drop testers that allow users to:

• Set specific drop heights
• Adjust drop orientations (flat, edge, or corner)
• Conduct repeated and controlled drop tests
• Gather accurate and reproducible results

Why Drop Testing is Important

Using a drop tester is essential for ensuring product safety and packaging reliability. Here are the primary reasons for using drop testing:

• Prevents product damage during transit
• Reduces returns and complaints
• Enhances customer trust
• Meets global packaging test standards
• Improves packaging design

If your business involves shipping fragile or valuable items, a drop tester should be part of your quality control process.

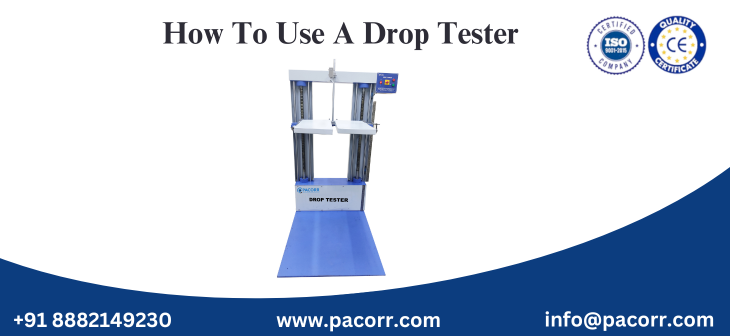

Main Components of Pacorr Drop Tester

Understanding the structure of the drop tester is the first step to using it efficiently. The key components include:

• Drop Arm or Holding Clamp – Holds the product securely before release
• Adjustable Height Mechanism – Enables setting the exact drop height
• Drop Platform – The surface on which the product is dropped
• Control Panel – For managing drop parameters and triggering the test
• Safety Frame – Provides safety when testing heavy or sharp products

Step by Step Procedure to Use a Drop Tester

1. Prepare the Sample

• Select a product that is packed in its final packaging
• Do not use damaged samples or alter the packaging
• Measure and record product dimensions and weight before testing

2. Set the Drop Height

• Switch on the drop tester and set the required height using the vertical column
• Standard drop heights are between 300 millimeters and 1800 millimeters depending on the product type

3. Mount the Sample

• Place the product carefully between the clamps or on the platform
• Ensure it is centered and aligned correctly to prevent uneven falls
• Tighten the clamps just enough to hold the package without deforming it

4. Select the Drop Orientation
Pacorr Drop Testers support multiple drop orientations:

• Flat Drop – Simulates fall on the base or top
• Edge Drop – Simulates fall on the edges of the package
• Corner Drop – Simulates impact on the package corners

Choose the appropriate orientation based on the test objective.
5. Perform the Drop

• Clear the area around the machine
• Use the control panel or remote to release the clamp
• Allow the product to fall freely without interruption
• Observe the fall and how the product behaves on impact

6. Analyze the Results

• After the drop, inspect the external and internal damage
• Check for cracks, dents, leaks, or product displacement
• Record all observations in your quality checklist

7. Repeat the Test

• Repeat the test for different drop orientations
• Perform at least three repetitions for consistent and valid results
• Compare results across multiple units if necessary

Best Practices for Accurate Drop Testing

To get the most accurate and repeatable results from your drop tester, follow these best practices:

• Calibrate the machine regularly to ensure drop height accuracy
• Perform tests in a vibration-free area to avoid deviations
• Use test samples that represent real packaging conditions
• Avoid human interference during the drop
• Follow all safety guidelines and wear protective gear if needed

Common Testing Standards

Several international standards support the use of drop testers in quality assurance. Some of the most recognized include:

• ASTM D5276 – Standard test method for drop testing of loaded containers
• ISO 2248 – Describes vertical impact testing on packages
• ISTA 1A and ISTA 2A – Drop and shock tests for packages during transportation

Pacorr Drop Testers are designed to support and comply with these standards for enhanced trust and reliability in testing outcomes.

Also Read- How to Use a Drop Tester: A Comprehensive Guide

Advantages of Using Pacorr Drop Tester

• User Friendly Design – Easy to operate for both experts and beginners
• High Precision Mechanism – Ensures accurate and consistent drops
• Versatile Testing – Supports all types of drop orientations
• Custom Height Settings – Adjustable heights to simulate different fall scenarios
• Durable Construction – Designed for long-term industrial use


Tips to Improve Drop Test Accuracy

• Always conduct tests in a clean and dry environment
• Avoid multiple products in a single test
• Use a consistent setup for all samples
• Train staff on standard test procedures
• Document all test cases with images and observations

Pacorr’s Commitment to Quality Testing

Pacorr is known for manufacturing advanced and precise testing instruments for the packaging and manufacturing sectors. Our drop testers are used by clients across industries for their robust build, reliable performance, and adherence to quality standards.
With a focus on innovation and user safety, Pacorr Drop Testers deliver accurate testing experiences that support research, product development, and production quality control.

Also Read- Step by Step Guide to Using a Drop Tester by Pacorr

Using a drop tester effectively ensures your product packaging is reliable, durable, and ready to handle the challenges of transportation. From understanding its components to conducting multi-angle drop tests, each step plays a vital role in quality assurance. When paired with consistent procedures and standard compliance, drop testing helps businesses reduce product damage, save costs, and increase customer trust.
Pacorr’s Drop Tester is a trusted tool in this journey toward product excellence. Whether you are testing lightweight consumer products or heavy-duty industrial components, following the correct procedures and best practices will result in meaningful insights and improved packaging strategies.
