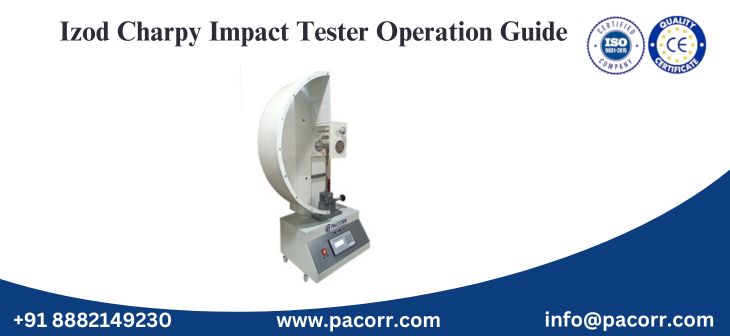

Izod Charpy Impact Tester Operation Guide

Pacorr offers high-precision testing instruments designed to evaluate the mechanical strength and impact resistance of materials. Among its reliable product line, the Izod Charpy Impact Tester plays a pivotal role in the quality control processes of industries dealing with plastic, metal, and composite materials. As a trusted Izod impact tester manufacturer, Pacorr brings cutting-edge technology and expertise to help manufacturers understand the toughness of materials when subjected to sudden impact loads.
In quality assurance, especially for products that must endure mechanical stress during use or transport, understanding impact strength is essential. The Izod and Charpy tests are standardized methods that determine how much energy a material absorbs before fracturing. This article serves as a detailed operational guide to help lab technicians, manufacturers, and quality engineers properly use the Izod Charpy Impact Tester.

What is an Izod Charpy Impact Tester?

The Izod Charpy Impact Tester is a specialized mechanical testing instrument used to determine the impact resistance of materials. It conducts two standard tests: the Izod impact test and the Charpy impact test, both of which measure the amount of energy absorbed by a specimen during fracture. The results help manufacturers evaluate material performance under real-life shock and stress conditions.
Both tests differ slightly in specimen orientation and notch placement, but the core purpose remains the same—assessing toughness and fracture behavior under dynamic loading.

Key Components of an Izod Charpy Impact Tester

Before proceeding with the test, it is essential to understand the primary parts of the testing machine:

•     Pendulum Arm – A swinging arm that strikes the test sample
•     Specimen Support Anvils – Secure the specimen for either Izod or Charpy configuration
•     Clamp Mechanism – Holds the test sample in a fixed position
•     Digital or Analog Display – Shows the amount of energy absorbed
•     Safety Shield or Enclosure – Protects the operator during testing
•     Notching Device – To prepare the V or U notch in specimens

These components work together to ensure accurate, consistent, and safe impact testing.

Preparing for the Test: Step-by-Step Pre-Operation Checklist

To ensure reliable test results, follow this pre-operation checklist before using the Pacorr Izod Charpy Impact Tester:
1.    Calibrate the machine according to the latest ISO/ASTM standards.
2.    Check the pendulum arm for any physical damage or imbalance.
3.    Verify the specimen dimensions (as per ISO 179 for Charpy and ASTM D256 for Izod).
4.    Ensure the notch is properly made and aligned on the tension face.
5.    Clean the anvil and support surfaces to avoid unwanted friction or movement.
6.    Zero the energy scale before starting the test cycle.

Step-by-Step Guide: How to Conduct an Izod Impact Test

1. Mount the Specimen
Insert the notched test sample vertically in the vise with the notch facing the pendulum. The notch should be precisely aligned with the point of impact.
2. Adjust the Pendulum Arm
Raise the pendulum to a pre-determined height, which correlates to the energy capacity required for the test.
3. Close the Safety Shield
Always ensure the transparent shield or enclosure is closed to protect the operator from flying fragments.
4. Release the Pendulum
Initiate the test by releasing the pendulum. It swings downward, hitting the specimen, and continues its motion.
5. Read the Absorbed Energy
Observe the pointer or digital display to record the amount of energy absorbed by the specimen during fracture.
6. Document the Result
Record all necessary details: specimen ID, absorbed energy (in joules), temperature, type of notch, and orientation.

Step-by-Step Guide: How to Conduct a Charpy Impact Test

1. Position the Specimen
Place the notched specimen horizontally between two supports with the notch facing away from the pendulum.
2. Set the Pendulum Angle
Lift the pendulum to a specific angle for consistent energy application.
3. Lock the Safety Guard
Ensure all safety enclosures are locked and all personnel are at a safe distance.
4. Execute the Swing
Release the pendulum so it strikes the midpoint of the specimen behind the notch.
5. Measure and Record
The machine will display the energy absorbed. Note this and any visual observations such as ductile or brittle fracture.

Best Practices to Ensure Accurate Test Results

Best Practices to Ensure Accurate Test Results

•     Use standard-compliant samples: The specimen dimensions must follow ISO or ASTM standards depending on your testing requirements.
•     Maintain consistent environmental conditions: Temperature and humidity can affect impact resistance.
•     Regular calibration: The impact tester must be calibrated regularly using certified calibration blocks.
•     Use the same pendulum energy range for repeatability: Changing energy ranges between tests can cause data inconsistency.

Safety Precautions While Operating the Izod Charpy Impact Tester

•     Always wear protective gear such as goggles and gloves.
•     Do not bypass or disable safety interlocks.
•     Never attempt to retrieve the sample before the pendulum comes to a full stop.
•     Use sample ejectors or tongs to remove broken pieces.

Applications of Izod and Charpy Impact Testing

Pacorr’s Izod Charpy Impact Tester finds applications in multiple sectors:

•     Plastic Manufacturing: Evaluates polymer toughness for packaging and containers.
•     Automotive Industry: Assesses material durability in parts like bumpers and dashboards.
•     Construction: Ensures that PVC pipes and insulation materials meet safety norms.
•     Research & Development: Used for material characterization in labs.
•     Metal & Alloy Industry: Helps in fracture analysis and safety testing.

Why Choose Pacorr as Your Izod Impact Tester Manufacturer?

Pacorr stands out in the market as a reliable Izod impact tester manufacturer, known for delivering durable, accurate, and easy-to-use machines. Whether for educational labs or heavy industrial use, the equipment is built with international standards in mind, offering excellent after-sales support, spare part availability, and calibration services.
Some unique features of Pacorr’s Izod Charpy Impact Tester include:

•     High precision pendulum mechanism
•     Easy switchover between Izod and Charpy modes
•     Digital energy readout for accuracy
•     Rigid body for minimal vibration interference
•     Conformance to ASTM D256, ISO 179, ISO 180 standards

Troubleshooting Common Issues

•     Inaccurate Readings: Recalibrate the pendulum and inspect for misalignment.
•     Specimen Slippage: Check the clamp for tightness or damage.
•     Pendulum Not Releasing: Inspect the latch mechanism and ensure safety locks are disengaged.
•     Repeated Breaks at Unexpected Angles: Re-evaluate notch placement and pendulum height.

Conclusion: The Right Impact Testing Starts with the Right Equipment

Pacorr’s Izod Charpy Impact Tester offers a dependable solution for industries and labs focused on material integrity and product safety. By following the correct operational procedure and maintenance practices, users can achieve consistent and reliable test outcomes. With the added assurance of working with a trusted Izod impact tester manufacturer, you gain the confidence to meet global quality standards in your product evaluations.
Are you ready to strengthen your material testing capabilities? Reach out to Pacorr for expert advice and precision testing equipment built to match your needs.
