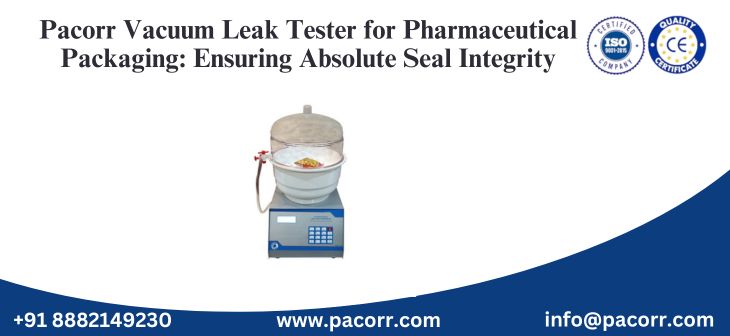

Pacorr Vacuum Leak Tester for Pharmaceutical Packaging: Ensuring Absolute Seal Integrity

Pacorr’s Vacuum Leak Tester for Pharmaceutical Packaging is a critical quality control instrument designed to detect leaks, pinholes, and weak seals in various pharmaceutical packaging formats. In a highly regulated industry where product sterility, shelf life, and safety are paramount, Pacorr’s precision leak testing equipment ensures airtight packaging that meets global pharmaceutical standards. From blister packs and ampoules to sachets and vials, the vacuum leak tester plays a central role in maintaining drug efficacy and consumer safety.

This blog provides a comprehensive overview and step-by-step guide on how the Pacorr Vacuum Leak Tester operates, its features, benefits, and how it supports compliance with regulatory standards such as USP, ASTM, and ISO.

What Is a Vacuum Leak Tester?

A Vacuum Leak Tester is a specialized testing device used to evaluate the integrity of pharmaceutical packaging by exposing it to vacuum conditions. The test identifies micro leaks or defective seals by observing whether air or fluid escapes or enters the package during the vacuum cycle. It is a non-destructive or destructive testing method depending on the type of packaging and test protocol used.

Pacorr's model is engineered to deliver repeatable, accurate, and fast testing, making it an essential component in modern pharmaceutical production lines.

Why Leak Testing Is Crucial in the Pharmaceutical Industry

In the pharmaceutical sector, even the smallest leak can compromise a drug's:

• Sterility
• Potency
• Shelf life
• Regulatory compliance

Leaks in packaging may allow ingress of air, moisture, or microbial contaminants, rendering the drug unsafe or ineffective. Therefore, it’s essential to have a robust vacuum leak detection system that helps eliminate such risks.

Key Applications of Vacuum Leak Tester for Pharmaceutical Packaging

Pacorr’s Vacuum Leak Tester is widely used across pharma manufacturing facilities for testing the following packaging formats:

• Blister packs (tablets and capsules)
• Ampoules and vials (injectables)
• Sachets and pouches (powdered or liquid medicines)
• Strip packs
• Syringes and prefilled devices
• Sealed bottles with induction or heat-sealed caps

It is particularly effective in validating the seal strength of primary packaging that comes into direct contact with the product.

Technical Features of Pacorr Vacuum Leak Tester

Pacorr's leak testing equipment comes with several advanced features that ensure efficiency and reliability:

• Digital vacuum controller for precise setting and control
• Transparent acrylic desiccator chamber to visually observe packaging deformation or bubble formation
• Robust vacuum pump capable of achieving desired negative pressure quickly
• Adjustable vacuum hold timer
• Easy-to-use interface with programmable test cycles
• Compact and ergonomic design suitable for lab or production use

These features make the Pacorr Vacuum Leak Tester ideal for both R&D labs and pharmaceutical production floors.

Step-by-Step Operation of a Vacuum Leak Tester

To ensure effective and reliable leak testing, follow this operational procedure:

1. Initial Setup and Safety Check

• Connect the device to a stable power supply and check all tubing connections.
• Ensure the desiccator chamber and vacuum lines are clean and free of debris.
• Fill the chamber with clean water if using the bubble test method.

2. Sample Preparation

• Place the pharmaceutical packaging (blister, ampoule, vial, sachet, etc.) inside the vacuum chamber.
• Ensure that samples are fully submerged in water (if applicable) or placed as per test requirements.
• Make sure packages are not touching each other to avoid false readings.

3. Set Test Parameters

Using the digital control panel, set the desired parameters such as:

• Vacuum level (usually between -200 to -600 mmHg depending on product)
• Vacuum hold time (commonly 30 to 60 seconds)
• Release time

These parameters can be adjusted to meet specific test standards (e.g., ASTM F2338, USP 1207).

4. Initiate Vacuum Cycle

• Start the test by pressing the “Vacuum ON” button.
• The chamber will begin to evacuate air, creating a vacuum environment.
• Observe the packaging during vacuum application. Look for continuous air bubbles (for wet method) or any physical deformation (for dry method).

5. Holding and Monitoring

• Allow the vacuum to stabilize and hold for the programmed duration.
• Carefully observe any indication of packaging failure, such as bubbling or collapse.
• If no bubbles are observed, and the package remains stable, it is considered leak-free.

6. Test Completion and Analysis

• After the test duration, turn off the vacuum and slowly vent the chamber.
• Remove the test samples and inspect them further if needed.
• Document the results: pass or fail based on visible signs of leakage.

Types of Vacuum Leak Testing Methods

Depending on packaging type and test objective, Pacorr’s tester supports multiple methods:

A. Bubble Emission Test (Water Immersion Method)

• Common for blister packs, pouches, and sachets
• Detects leak by visual observation of air bubbles

B. Dry Vacuum Test

• Suitable for sterile or dry-packed items
• Identifies structural failure or collapse in rigid containers like ampoules or prefilled syringes

Benefits of Using Pacorr Vacuum Leak Tester

• Improved product safety through early detection of leaks
• Compliance with global regulatory standards (USP 1207, ASTM F2338)
• Fast and accurate results, boosting overall production efficiency
• User-friendly interface reduces chances of operational errors
• Reduces recalls and customer complaints by ensuring only sealed products leave the facility

Pacorr’s equipment contributes to building a robust pharmaceutical packaging validation process, which is a must in today’s highly quality-driven pharma industry.

Industry Standards Supporting Vacuum Leak Testing

To ensure reliable and acceptable testing, Pacorr’s device supports parameters aligned with:

• USP <1207>: Container Closure Integrity Testing
• ASTM F2338: Standard Test Method for Nondestructive Detection of Leaks in Packages by Vacuum Decay Method
• ISO 11607: Packaging for terminally sterilized medical devices

Always refer to the appropriate standard to define test conditions and acceptance criteria.

Maintenance Tips for Long-Term Performance

To ensure the Vacuum Leak Tester performs optimally over the long term:

• Regularly clean the chamber and water
• Inspect vacuum pump oil levels and tubing for leaks
• Calibrate the vacuum gauge annually
• Keep the unit covered when not in use to avoid dust ingress

Proper maintenance enhances test accuracy, extends equipment life, and avoids downtime.

Why Choose Pacorr as Your Leak Testing Partner?

Pacorr brings years of experience in manufacturing high-quality, reliable, and cost-effective vacuum leak testers for pharmaceutical packaging. Their equipment is built with technical precision and adherence to industry norms, making it an excellent choice for pharmaceutical manufacturers looking for performance, safety, and regulatory compliance.

When you choose Pacorr, you choose:

• Robust design
• Accurate results
• User satisfaction
• Technical support and service reliability

Conclusion

Pacorr’s Vacuum Leak Tester for Pharmaceutical Packaging plays a vital role in ensuring that medicines reach consumers with uncompromised safety and quality. From detecting micro-leaks in blister packs to validating sealed ampoules, this device delivers high-precision testing that aligns with global pharmaceutical compliance standards.

By following the step-by-step operation and maintenance guide shared above, manufacturers can elevate their packaging integrity standards, prevent contamination risks, and improve overall product shelf life and brand trust.
