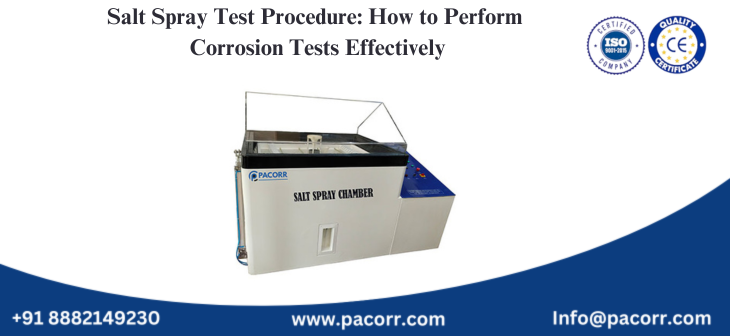

Salt Spray Test Procedure: How to Perform Corrosion Tests Effectively

Pacorr’s Salt Spray Test Procedure is an essential method for evaluating the corrosion resistance of metal components, protective coatings, and assemblies under accelerated, chloride-rich conditions. By simulating years of exposure in coastal or industrial environments within days or weeks, this standardized test helps engineers identify coating weaknesses, compare formulation performance, and ensure manufacturing consistency. Leveraging Pacorr’s precision-controlled chambers, you can generate reliable, repeatable data empowering your team to make informed decisions that extend product lifecycles, reduce warranty claims, and safeguard your reputation for quality.

Why Salt Spray Testing Matters
Salt spray testing provides rapid feedback on how a material or coating will perform in harsh, chloride-rich environments such as coastal regions or industrial atmospheres. Unlike outdoor exposure tests that may take months or years, a salt spray chamber can replicate years of corrosion in just days or weeks. This accelerated testing helps:

• Identify weak spots in coatings or metal substrates early in development.
• Compare different formulations of protective coatings under identical conditions.
• Validate production consistency by periodically testing batches from the manufacturing line.

By conducting repeatable, standardized tests, engineers and quality managers can make data-driven decisions that reduce warranty claims, avoid field failures, and extend product life cycles.

Understanding the Standard: ASTM B117
The most widely recognized protocol for salt spray testing is ASTM B117, “Standard Practice for Operating Salt Spray (Fog) Apparatus.” This standard specifies:

• Solution composition (typically 5 ± 0.5% sodium chloride by weight).
• pH range (6.5–7.2) of the salt solution.
• Chamber temperature (35 ± 2 °C).
• Spray rate (at least 1 mL/h per 80 cm² of chamber area).

Adhering strictly to ASTM B117 ensures that your results are comparable not only across different labs but also against industry benchmarks. Pacorr’s chambers are designed for precision control of these parameters, guaranteeing you achieve accurate, repeatable outcomes every time.

Preparation: Samples, Fixtures, and Solution
Before you begin your salt spray test, proper preparation is key:

Sample Cleaning

• Remove oils, greases, or contaminants using mild detergents or solvents.
• Rinse thoroughly with deionized water and dry in clean, lint-free conditions.

Fixture Selection

• Use non-corroding fixtures (e.g., stainless steel, polypropylene) that don’t influence test results.
• Position samples at a 20°–30° angle to ensure uniform exposure to salt fog and allow condensate runoff.

Salt Solution Preparation

• Dissolve analytical-grade NaCl in deionized water to achieve a 5% solution by weight.
• Measure and adjust pH to within 6.5–7.2 using dilute HCl or NaOH.
• Filter the solution to remove particulates before filling the chamber reservoir.

Setting Up Your Salt Spray Chamber
A well-calibrated chamber is the heart of a successful test. Follow these steps:

Fill the Reservoir

• Pour the prepared salt solution into the reservoir, ensuring no air bubbles enter the supply lines.

Adjust Temperature Controls

• Set the chamber temperature to 35 °C and allow at least 30 minutes for stabilization.

Verify Spray Rate

• Place calibration cups on the sample rack and measure condensate volume over one hour.
• Adjust nozzle settings until you achieve 1–2 mL/h per 80 cm² of cup area.

Document Baseline Conditions

• Record chamber temperature, pH of the solution, spray rate, and ambient humidity in your logbook.

Performing the Test Step by Step
Following a consistent procedure is crucial for data integrity:

Load Samples

• Carefully hang or mount cleaned samples on the fixture rail.
• Ensure samples do not touch each other or chamber walls.

Initiate Fog Cycle

• Close the chamber door and start the mist generator.
• Check that a fine, even mist is being produced.

Monitor Regularly

• At least once per shift, verify temperature, pH, and spray performance.
• Refill solution as needed to maintain reservoir levels.

Terminate After Specified Duration

• Common test durations range from 24 h (for comparative ranking) to 1000 h (for long-term performance).
• Always follow customer specifications or relevant ASTM/ISO test methods.

Post-Test Handling

• Remove samples and rinse gently with distilled water to stop further corrosion.
• Dry samples in a dust-free environment before evaluation.

Evaluating and Reporting Results
Data from a salt spray test is only as valuable as its interpretation:

Visual Inspection

• Note onset of white rust (zinc-rich coatings) or red rust (iron substrates).
• Use high-resolution photography or optical microscopy for documentation.

Mass Loss Measurements

• Weigh samples before and after testing to quantify corrosion rates.

Cross-Section Analysis

• Section coatings to check for undercutting or adhesion loss.

Reporting Format

• Provide a clear table summarizing conditions, durations, and observed failures.
• Include photographic evidence and test logs to support conclusions.

By rigorously evaluating your findings, you demonstrate expertise and build authoritativeness within your team and with clients.

Link to Related In-Depth Guides
For more specialized insights and advanced techniques, explore our dedicated blog posts:

• How to Use a Salt Spray Chamber for Corrosion Testing
• Step-by-Step Guide to Operating a Salt Spray Chamber
• Using a Salt Spray Chamber: Best Practices for Accurate Results

These resources dive deeper into chamber calibration, troubleshooting common errors, and optimizing your workflow for maximum reliability.

Ensuring Trustworthiness and Compliance
At Pacorr, we go beyond meeting standards. Our chambers are calibrated annually by ISO/IEC 17025-accredited labs, and our technical team holds certifications in materials science and corrosion engineering. We also maintain a robust quality management system certified to ISO 9001:2015. By choosing Pacorr, you’re partnering with a manufacturer committed to trustworthiness and continuous improvement.

Conclusion
A well-executed salt spray test provides invaluable data on corrosion resistance, guiding material selection and process optimization. By following the steps outlined sample preparation, chamber setup, rigorous monitoring, and objective evaluation you can achieve highly reproducible results. Remember to consult our deeper dives on to refine your technique further.

Investing in proper salt spray testing today can save significant costs down the road by preventing premature failures and reinforcing your reputation for quality. Trust Pacorr’s proven solutions and expert guidance to elevate your corrosion testing program and deliver lasting performance.
