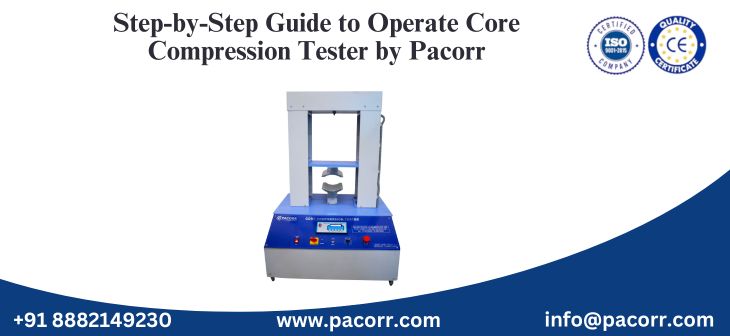

Step-by-Step Guide to Operate Core Compression Tester by Pacorr

Pacorr brings precision, reliability, and ease-of-use with its advanced Core Compression Tester, a crucial instrument designed for testing the compressive strength of paper cores, cardboard tubes, and cylindrical packaging materials. Ensuring that these components can withstand compressive loads is vital for industries like packaging, paper manufacturing, textile winding, and shipping. Pacorr’s core compression testing machine is engineered with advanced load sensing technology and robust structural design, making it an ideal choice for consistent and accurate testing.

Understanding how to correctly operate the Core Compression Tester is essential not only to ensure accurate readings but also to extend the life of the equipment. This guide provides an in-depth, step-by-step overview of the operating procedure, from preparation to result interpretation, empowering quality control professionals and lab technicians to perform tests confidently and effectively.

What is a Core Compression Tester

A Core Compression Tester is a testing device that evaluates the compressive strength of cylindrical cores made from materials like paperboard, composite tubes, fiberboard, and plastic. These materials are commonly used for winding films, foils, textiles, and paper products. The test helps determine the maximum load the core can bear before collapsing under pressure.

Applications of Core Compression Testing

• Packaging industry: For ensuring safe transportation of rolled materials
• Textile industry: For assessing the reliability of yarn and fabric tubes
• Printing industry: To verify the strength of paper cores used in large format printers
• Flexible film manufacturers: To maintain product integrity during roll handling and storage

Key Features of Pacorr Core Compression Tester

• Digital display for precise readings
• High-capacity load cells
• Uniform downward movement of compression platen
• Microprocessor-based or computerized control options
• Rugged construction to handle industrial use
• User-friendly operation with minimal training

Step-by-Step Guide to Operate Core Compression Tester

1. Pre-Operation Setup

Before starting the test, it is essential to set up the machine and environment properly:

• Place the machine on a stable and vibration-free surface to ensure accuracy.
• Check calibration status of the load cell using a certified calibration weight or service tool.
• Ensure power supply is stable and conforms to the machine’s voltage requirement.
• Turn on the machine using the main power switch and allow the system to initialize.

2. Preparing the Test Specimen

• Select the paper core or tube sample that matches the standard size for the test (commonly 100 mm length, with variable inner and outer diameters).
• Inspect the sample for visible damage or defects that may skew results.
• Ensure that the ends of the core are smooth and perpendicular to the axis to avoid uneven load distribution.
• Mark the central area on both ends for proper alignment with the compression platens.

3. Placing the Specimen

• Open the testing compartment and raise the upper platen using the control panel or manual knob.
• Carefully place the core sample vertically between the upper and lower compression platens.
• Adjust alignment to ensure the axis of the core is perfectly vertical.
• Lower the upper platen gently to rest just above the sample without applying pressure.

4. Setting Test Parameters

Use the control panel or software interface (depending on your model) to configure test conditions:

• Select test mode (manual or automatic)
• Set load rate (commonly expressed in mm/min or kN/min)
• Input sample dimensions such as height and diameter (if software requires it)
• Enable real-time data logging if the machine is connected to a computer system

5. Executing the Test

• Start the compression test using the ‘Start’ or ‘Run’ button.
• The upper platen will move downward at the predefined rate.
• Observe load increase on the digital screen as the platen compresses the core.
• The test will continue until the core fails or collapses, recording the peak load value.
• Once failure occurs, the platen will automatically stop (or can be manually stopped in manual mode).

6. Recording and Analyzing Results

• Note the maximum compression force displayed on the screen (in kgf or Newtons).
• For digital or computerized models, the data can be exported to a computer for further analysis.
• Calculate compressive strength if needed using the formula:
  Compressive Strength = Load at Failure / Cross-sectional Area
• Compare values with industry benchmarks or quality standards to determine material quality.

7. Post-Test Procedure

• Raise the upper platen and carefully remove the crushed sample.
• Inspect the failed sample to understand failure patterns (e.g. buckling, splitting).
• Clean the platen surfaces to remove dust or debris for the next test.
• Turn off the machine if no more tests are scheduled.

Best Practices for Accurate Results

1. Test multiple samples (minimum 5) and take the average result for higher reliability.
2. Always verify alignment before starting a test to avoid misleading results.
3. Re-calibrate the machine periodically to maintain long-term accuracy.
4. Maintain a controlled lab environment, as humidity and temperature may affect core behavior.
5. Record all results along with environmental conditions, operator name, and sample code.

Benefits of Using Pacorr Core Compression Tester

• Accurate and repeatable results for quality assurance
• Reduces material failure risks during product application
• Ensures compliance with industry and client standards
• Speeds up testing process with digital and automated functions
• Increases confidence in packaging strength for export and transport

Safety Instructions

• Do not place hands or foreign objects between platens during operation
• Always power off before cleaning or maintenance
• Ensure the machine is grounded properly
• Follow manufacturer-recommended maintenance schedules

Conclusion

Pacorr’s Core Compression Tester offers unmatched performance and dependability in determining the strength of cylindrical cores used across packaging and textile industries. By following this comprehensive step-by-step guide, users can perform compression tests with precision, improving product reliability and minimizing defects. Whether you’re conducting routine quality checks or new material evaluations, operating the Core Compression Tester properly ensures data accuracy and operational safety.

Ready to upgrade your quality control process? Use Pacorr’s Core Compression Tester to elevate your testing standards with confidence and control.
