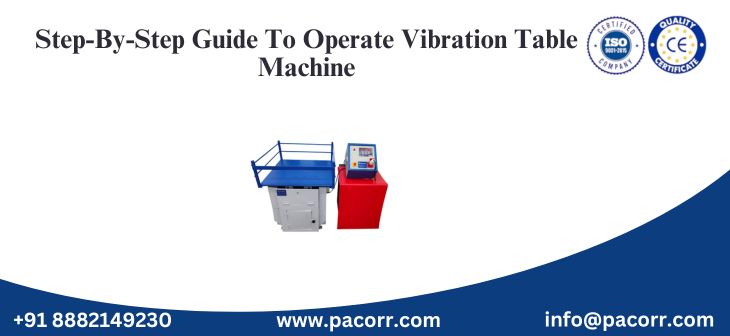

Step-By-Step Guide To Operate Vibration Table Machine

Introduction

Pacorr is a trusted name in quality testing instruments, offering reliable and precision-engineered solutions for packaging performance analysis. One such equipment developed by Pacorr is the Vibration Table, widely used to simulate the vibrations experienced by products during transportation. This machine plays a crucial role in determining packaging durability and ensuring product safety under real-time transit conditions. By simulating the dynamic stress of shipping and handling, the Pacorr Vibration Table Machine enables manufacturers and packaging engineers to improve their packaging systems and reduce transit damages.

This comprehensive guide provides a step-by-step procedure to operate the Vibration Table, understand its features, optimize its functions, and ensure accurate and repeatable results. Whether you are from the FMCG, electronics, pharmaceutical, or logistics industry, understanding how to use a vibration tester properly is key to maximizing your packaging reliability.

What is a Vibration Table Machine?

A Vibration Table, also known as a vibration testing machine or vibration simulation table, is designed to mimic the frequency and amplitude of vibrations that occur during handling and transport. This helps determine if the packaging can protect the product inside under different types of movement.

Key Functions of Pacorr Vibration Table:

1. Simulates vertical and rotary vibration motion
2. Adjustable frequency range for different testing requirements
3. Heavy-duty platform for varied product sizes and weights
4. Digital control panel for easy operation and accurate data input
5. Conforms to testing standards like ASTM D999 and ISTA procedures

Importance of Using Vibration Table in Packaging

• Reduces product damage during shipping
• Optimizes packaging design and material selection
• Improves brand reputation by minimizing customer returns
• Validates packaging for compliance with global shipping standards

Testing with a Pacorr Vibration Table ensures the protective capabilities of packaging solutions and helps manufacturers avoid logistics-related failures.

Step-by-Step Guide to Operate Vibration Table Machine

Below is a detailed operation guide to help you run your vibration testing machine efficiently and safely.

Step 1: Pre-Operation Inspection and Preparation

1. Check Power Supply:
   • Ensure the machine is connected to a grounded electrical socket.
   • Verify that the voltage requirement matches the equipment specification.
2. Inspect Platform Surface:
   • Clean the surface of the vibration platform to remove any debris or residue.
   • Make sure the mounting bolts are tight and platform is stable.
3. Review Safety Guidelines:
   • Wear appropriate PPE (safety shoes, gloves).
   • Ensure the emergency stop button is functioning.
4. Machine Warm-Up (if recommended):
   • Allow the system to stabilize by running it idle for 2–3 minutes.

Step 2: Sample Preparation and Placement

1. Select Packaging or Product for Testing:
   • Choose a packaged product or container that needs vibration testing.
2. Place Test Sample:
   • Position the sample in the center of the vibration platform.
   • Use restraints or straps to secure the product if needed to prevent lateral movement.
3. Ensure Load Distribution:
   • Distribute the weight evenly across the platform to avoid instability during testing.

Step 3: Set Test Parameters on Control Panel

1. Switch On the Main Power:
   • Turn on the power from the main panel and wait for the control interface to activate.
2. Select Mode of Vibration:
   • Most Pacorr Vibration Table Machines offer vertical synchronous movement or rotary cam-based vibration.
   • Choose the required mode based on your testing standard (e.g., ASTM D999 Method A or B).
3. Set Vibration Frequency:
   • Input the desired frequency (usually adjustable between 2 to 6 Hz).
   • Standard simulation often uses 120–300 RPM.
4. Set Test Duration:
   • Choose the total test time (e.g., 30, 60, or 120 minutes) depending on your test procedure.
5. Double-check Settings:
   • Confirm all parameters before initiating the operation.

Step 4: Start Vibration Testing Process

1. Press Start Button:
   • Initiate the vibration test. The platform will begin moving as per the programmed parameters.
2. Monitor the Process:
   • Observe the sample and machine during the test.
   • Listen for unusual sounds or abnormal movements.
   • Ensure no shifting of sample occurs.
3. Pause if Necessary:
   • Use the pause or stop function if sample displacement or hazard is detected.

Step 5: Test Completion and Data Review

1. Automatic or Manual Stop:
   • Once the set time elapses, the machine will stop automatically.
   • Alternatively, press the stop button if needed.
2. Inspect the Product:
   • Check the product and packaging for any visible damage, tears, or deformation.
   • Document all findings and compare with baseline data.
3. Record and Store Test Data:
   • Note the frequency, duration, and any observed failures.
   • Save results for internal reporting or third-party validation.

Step 6: Post-Test Cleanup and Shutdown

1. Remove the Test Sample:
   • Carefully lift the tested item and clean any debris left behind.
2. Turn Off Power:
   • Shut down the machine from the control panel and disconnect power supply if necessary.
3. Perform Maintenance Check:
   • Inspect platform bolts and motor for signs of wear or looseness.
   • Schedule regular lubrication and calibration as per Pacorr’s recommended maintenance schedule.

Key Tips for Efficient Vibration Testing

• Always verify the standard you are testing against (ISTA, ASTM, ISO).
• Do not overload the platform beyond the rated capacity.
• Re-calibrate the machine regularly to maintain test accuracy.
• Use protective covers during testing if the sample is fragile or contains liquids.

Applications of Pacorr Vibration Table

1. FMCG and Food Packaging:
   • Validates packaging for jars, pouches, and trays during transit simulation.
2. Pharmaceutical Industry:
   • Ensures that blister packs, syrups, and vials can withstand transport vibration.
3. Electronics:
   • Tests boxes and foam inserts for damage prevention of gadgets and components.
4. Automotive Components:
   • Simulates road conditions for parts like brake pads, filters, and dashboards.
5. Export Packaging:
   • Assists exporters in ensuring compliance with international vibration testing norms.

Benefits of Using Pacorr Vibration Table

• Accurate Real-World Simulation: Mimics actual road, air, and sea transit conditions.
• Enhanced Product Safety: Detects packaging design flaws before shipment.
• Time and Cost Saving: Prevents product returns due to damages.
• Compliance Assurance: Fulfills various regulatory and client-specific testing protocols.

Conclusion

Pacorr’s Vibration Table Machine is an essential testing solution for companies that prioritize packaging reliability and product safety. By following the detailed step-by-step operating procedure outlined above, operators can ensure standardized testing practices, accurate data collection, and optimal use of the machine. Whether you’re testing cartons, crates, fragile items, or electronics, this vibration table provides precise simulation for better packaging decisions.

To enhance your product quality and avoid transit damage complaints, integrate Pacorr’s Vibration Table into your quality assurance protocol and experience dependable results with every test.
