How to Measure Torque of Bottle Caps Accurately

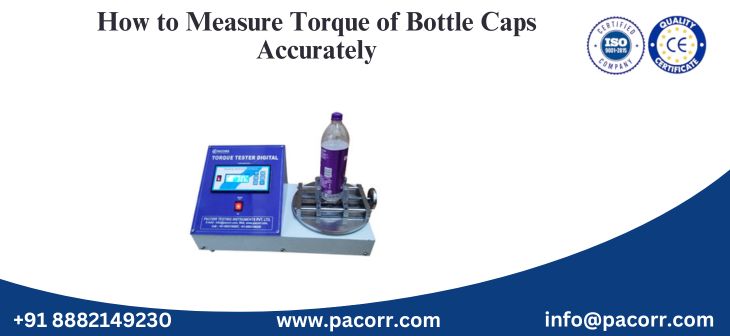

Pacorr's Bottle Cap Torque Tester is an essential quality control tool designed to accurately measure the torque required to open or close bottle caps. In industries like beverages, pharmaceuticals, cosmetics, and food packaging, maintaining proper torque values is not just a recommendation—it is a necessity. If a cap is too loose, leakage may occur. If it's too tight, it can frustrate the customer and damage the bottle during opening. Pacorr understands this challenge and provides a robust solution with its advanced torque testing instruments tailored to various cap types and bottle sizes.
This detailed guide will explain how to measure torque effectively using Pacorr's equipment and the importance of getting torque values right in a packaging environment.

What is Bottle Cap Torque and Why is It Important?

Torque is the rotational force applied to tighten or loosen a cap on a container. In the context of bottles, torque values are crucial for ensuring:
1.    Leak-proof sealing
2.    Product freshness retention
3.    Safe and tamper-evident packaging
4.    User-friendly opening experience
5.    Regulatory compliance for safety and quality

If the cap is under-torqued, it may loosen during transport. Over-torqueing can damage the cap or threads, making the bottle unusable. Accurate torque measurements ensure that packaging integrity remains intact from factory to consumer.

Types of Torque Measured by Pacorr’s Bottle Cap Torque Tester

Pacorr’s instrument is designed to measure different types of torque that are relevant in the packaging process:
1.    Application Torque
This refers to the torque applied during the capping process. It helps ensure proper sealing.
2.    Removal Torque
This is the force required to open the cap. It directly impacts user experience and tamper-evidence.
3.    Strip Torque
This is the torque value at which the cap’s thread or the bottle thread starts to fail. It is critical for determining maximum limits.
With Pacorr's high-precision digital torque testers, manufacturers can test all three torque types consistently and efficiently.

Why Use Pacorr’s Bottle Cap Torque Tester?

Pacorr offers a user-friendly, high-accuracy torque testing machine specifically engineered for testing PET, glass, and plastic bottles. The tool provides:

  •     Digital display with high-resolution torque readings
  •     Stable gripping mechanism to hold bottles of different shapes and sizes
  •     Peak hold mode for capturing maximum torque values
  •     Manual and motorized models depending on production needs
  •     Compliance with international test standards

Using this equipment, manufacturers can fine-tune their capping machines and monitor torque consistency across batches.

Step-by-Step Process to Measure Bottle Cap Torque Accurately

To ensure reliable readings while testing bottle cap torque, follow these steps:
Step 1: Prepare the Bottle Sample

  •     Use bottles directly from your production line.
  •     Make sure caps are sealed under standard conditions.
  •     Avoid testing samples with damaged threads or non-standard closures.

Step 2: Mount the Bottle Securely

  •     Place the bottle in the holding fixture of the torque tester.
  •     Adjust the gripping clamps to ensure the bottle doesn’t rotate or slip.
  •     Align the cap with the torque measuring head.

Step 3: Zero the Instrument

  •     Before starting, ensure the digital display is set to zero.
  •     Calibrate the tester if needed, especially if it's being used for the first time that day.

Step 4: Perform the Torque Test

  •     To check removal torque, manually or automatically rotate the cap counter-clockwise.
  •     Observe the peak torque value displayed when the cap starts to move.
  •     For application torque, reverse the process and apply force while sealing the cap.
  •     For strip torque, continue rotating until threads fail and the maximum torque point is recorded.

Step 5: Record and Analyze the Results

  •     Document the torque values.
  •     Compare them with acceptable tolerance ranges for your specific bottle and cap combination.
  •     Use the data to adjust capping machines if torque is out of spec.

Best Practices for Accurate Torque Testing

For the most reliable results, consider implementing the following practices in your lab or production floor:
1.    Regular Equipment Calibration
Always calibrate the torque tester as per manufacturer guidelines to avoid reading deviations.
2.    Maintain a Consistent Environment
Torque readings can be influenced by temperature and humidity. Try to test in stable, controlled conditions.
3.    Test Multiple Samples
Run tests on 5–10 bottles from the same production lot to get an average torque value.
4.    Avoid Manual Bias
If possible, opt for motorized torque testers to reduce human error and improve repeatability.
5.    Keep Equipment Clean
Wipe the jaws and sensors regularly to prevent slippage or inaccurate readings.

Industries That Rely on Torque Testing

Pacorr’s Bottle Cap Torque Tester is widely trusted across many sectors:

  •     Pharmaceuticals

Where torque affects the child-resistance and compliance with medical packaging laws.

  •     Beverages

Especially for carbonated drinks, where incorrect torque can cause leaks or explosions.

  •     Personal Care & Cosmetics

Where both functionality and appearance matter.

  •     Food Packaging

Ensuring freshness and hygiene, particularly in sauces, syrups, and dairy products.

  •     Chemicals and Cleaners

Where safe and secure closures prevent accidents and spills.

Applicable Testing Standards for Torque Measurement

Pacorr designs its torque testers to comply with recognized global standards such as:

  •     ASTM D2063 – Evaluates torque retention of plastic closures.
  •     ISO 8294 – Describes a method for determining torque in packaging.
  •     JIS S 0022 – Japanese standard for plastic bottle cap torque.
  •     ASTM D3198 – Guide for testing child-resistant packaging.
  •     ISO 28862 – Torque testing method for aerosol and container closures.

By using Pacorr’s tester, manufacturers can confidently meet these regulatory expectations in their industry.

Benefits of Using Pacorr’s Torque Tester

1.    High Measurement Precision
Get accurate readings down to small torque differences for sensitive products.
2.    Reliable Quality Control
Detect faulty closures early and avoid costly product returns or leakage issues.
3.    Improved Production Efficiency
Identify issues with capping machines and make adjustments quickly.
4.    Enhanced Consumer Experience
Caps that are easy to open yet secure provide better satisfaction.
5.    Regulatory Compliance
Maintain documentation and reports as proof of quality control during audits.

Conclusion

Pacorr’s Bottle Cap Torque Tester is a vital instrument for ensuring that bottle caps meet the necessary torque specifications without compromise. From sealing integrity to user safety, torque measurement is a core element of packaging quality control. By using the right tools, following standardized procedures, and practicing consistent testing, manufacturers can achieve better product reliability, fewer returns, and stronger brand reputation.
For companies looking to streamline their quality control and packaging validation, Pacorr offers precision-engineered solutions that combine durability, accuracy, and simplicity. Investing in torque testing today ensures product excellence tomorrow.
