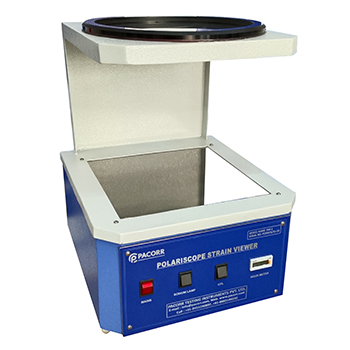

Polariscope Strain Viewer

What is a Polariscope Strain Viewer?

A Polariscope Strain Viewer is an optical inspection system that harnesses the principle of photoelasticity, where polarized light reveals stress-induced variations in the refractive index of materials. These changes highlight stress concentrations, cracks, and defects invisible to the human eye, making it an indispensable device for quality assurance teams in industries dealing with PET packaging, pharmaceutical bottles, cosmetic containers, and glass manufacturing.

Key Features of Pacorr’s Polariscope Strain Viewer

Two Model Variants:

• Polariscope Digital Model: Features a high-resolution digital display along with a built-in camera and advanced software for real-time stress visualization, recording, and comprehensive data analysis.
• Polariscope Computerized Model: Offers enhanced computer connectivity and automation options for larger-scale laboratory and industrial inspections.
• Durable Construction: Crafted with corrosion-resistant zinc and chrome finish with a sleek grey-blue body, designed to withstand long-term industrial use.
• User-Friendly Operation: Intuitive controls and adjustable viewing areas accommodate a range of product sizes and inspection requirements.
• Calibration Assurance: Each unit is supplied with a NABL-accredited calibration certificate ensuring reliable, traceable accuracy.
• Multiple Sizes & Specifications: Customizable options available to suit diverse application needs across manufacturing and R&D sectors.

Applications of Polariscope Strain Viewer

• PET Bottle Manufacturing: Detect hidden residual stresses that may cause brittle fractures or compromised seal integrity.
• Preform Quality Testing: Analyze preforms for uniformity in stress distribution before bottle blowing processes to reduce material waste.
• Cosmetic Packaging Inspection: Ensure transparent cosmetic containers meet quality standards without invisible stress defects.
• Pharmaceutical Bottle QC: Validate structural soundness crucial for compliance with health and safety regulations.
• Transparent Molded Parts Analysis: Ideal for plastics and polymer components used in automotive, electronics, and consumer products.
• Research and Development: Used in polymer labs and material science research for strain analysis and product development.

Why Choose Pacorr’s Polariscope Strain Viewer?

Pacorr’s Polariscope combines precision engineering, reliable durability, and advanced optics technology to deliver unmatched performance in strain analysis. Whether for inline production quality control or detailed laboratory investigation, this instrument helps prevent costly failures by revealing internal flaws early in the manufacturing cycle, boosting overall product reliability and consumer safety.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of a Polariscope Strain Viewer?
A1: It detects internal stresses, birefringence, and strain patterns within transparent materials such as PET preforms, glass bottles, and plastic parts, ensuring their strength and quality.

Q2: Can it be used to inspect plastic caps, vials, and ampoules?
A2: Yes, it effectively visualizes stress-related defects in small transparent components, including caps, vials, and molded plastics.

Q3: Does Pacorr offer a digital version of this instrument?
A3: Yes, the Polariscope Digital Model includes a digital display and camera with software for live viewing, recording, and detailed analysis of stress patterns.

Q4: What is the price range for Polariscope Strain Viewers in India?
A4: Prices vary from approximately ₹28,000 to ₹95,000 depending on the model, viewing size, and additional technical features.

Q5: How is Polariscope inspection better than simple visual checks?
A5: Unlike visual inspection that relies on the naked eye, Polariscope uses polarized light to reveal invisible internal stresses, providing far superior accuracy and reliability
