Bottle Wall Thickness Gauge

Why Packaging Integrity Depends on Exact Thickness Control

During the blow molding or glass-shaping manufacturing process, material distribution is rarely perfectly uniform. Minor fluctuations in temperature, preform quality, or air pressure can cause resin to pool at the base or thin out dangerously around the shoulder of a container.

The Risks of Unmonitored Structural Deviations:

• Top-Load Failure: Micro-thin sections lead to buckling, causing bottles to crease or completely collapse when stacked on pallets.
• Permeation & Leakage: Inadequate thickness increases gas permeability, which flatlines carbonation in soft drinks or oxidizes sensitive pharmaceutical formulations.
• Aesthetic Distortions: Inconsistent walls create optical warping, compromising the premium shelf presence required by high-end cosmetic brands.

The Pacorr Advantage: By integrating our digital thickness gauge into your QA/QC workflow, your production team can identify micro-variations across batches instantly, adjusting manufacturing parameters before a minor defect turns into a costly product recall.

How It Works: The Science of Non-Destructive Testing

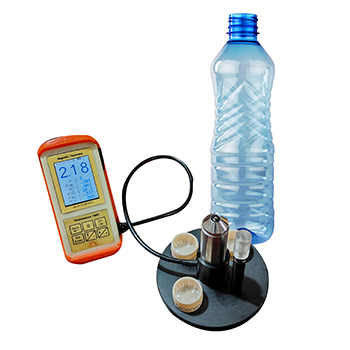

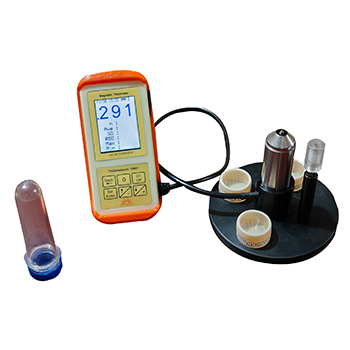

The Pacorr bottle wall thickness gauge operates on advanced magnetostatic principles, utilizing a precise magnetic tracking system to achieve laboratory-grade accuracy without damaging the sample.

1. Drop the Target: A small, precisely calibrated steel target ball is placed inside the test container.
2. Attract the Target: An advanced electromagnetic probe is placed against the outside wall of the container, magnetically locking the steel ball against the inner wall.
3. Real-Time Measurement: As the operator moves the probe across the critical points of the bottle (shoulder, body, heel, and base), the sensor dynamically measures the distance between the ball and the probe tip.
4. Instant Digital Output: The exact material thickness is instantly calculated and displayed on the digital control interface.

Key Features of Pacorr’s Digital Thickness Gauge

• Non-Destructive Analysis: Measure internal walls without cutting, slicing, or destroying your finished products saving material costs and reducing scrap.
• Advanced Electromagnetic Precision: Provides highly accurate readings that remain unaffected by the shape, curvature, or optical transparency of the material.
• Intuitive Digital Interface: Featuring a high-contrast, user-friendly digital display that shows real-time metrics, reducing operator error and training time.
• Multi-Material Versatility: A single instrument capable of testing a wide spectrum of non-ferrous materials, including PET, HDPE, LDPE, Polypropylene, and Glass.
• Seamless Data Connectivity: Built-in USB and RS232 data export ports allow for fast connection to PCs, enabling automated logging, statistical analysis, and seamless integration into ERP systems.

Industrial Applications: Protecting Brand Value Across Sectors

1. Beverage & Liquid Food Industry

From carbonated soft drinks (CSD) that must withstand internal pressure to hot-fill juices that contract during cooling, bottle wall thickness dictates shelf life. Our gauge ensures the base and finish areas meet strict structural specs to prevent stress cracking.

2. Pharmaceuticals & Nutraceuticals

Medicine bottles require uniform thickness to ensure an airtight barrier against moisture and oxygen. Pacorr gauges help manufacturers maintain compliance with international pharmacopeia packaging standards.

3. Cosmetics & Personal Care

High-end cosmetic packaging relies heavily on visual appeal and tactile premium feel. Accurate thickness testing ensures custom-molded geometries maintain structural strength without compromising on design aesthetics.

Sustainability Meets ROI: Smart Material Optimization

Modern manufacturing demands sustainability, and the easiest way to reduce your carbon footprint is through lightweighting reducing the amount of plastic resin used per bottle. However, shaving off too much material risks structural failure.

The Pacorr bottle wall thickness gauge allows engineering teams to safely push the boundaries of lightweighting. By providing precise data on exactly how thin a bottle wall can safely go, manufacturers can:

• Minimize raw plastic resin consumption.
• Significantly lower per-unit production costs.
• Meet corporate sustainability targets without risking transit damage or customer complaints.

Frequently Asked Questions (FAQs)

Q1: What makes a non-destructive gauge better than traditional calipers?
Mechanical calipers require you to cut the bottle open to take interior measurements. This destroys the product, creates sharp edge hazards, and introduces human error due to manual gripping pressure. Pacorr’s gauge leaves the container completely intact, allowing it to be returned to the production line or used for further testing.

Q2: Can this gauge measure completely opaque or colored plastic bottles?
Yes. Because the system relies on magnetic fields rather than optical lasers or light, the color, opacity, and transparency of the plastic or glass have absolutely no effect on the accuracy of the thickness reading.

Q3: Is training required to operate the digital interface?
The instrument is designed with plug-and-play simplicity in mind. Operators only need to drop the target ball inside the container and glide the probe along the surface. The clear digital screen handles the rest, requiring minimal technical training.

Q4: How does data connectivity help with quality audits?
With the integrated USB and RS232 ports, every single measurement can be exported directly to a centralized quality database. This creates a tamper-proof digital paper trail that simplifies compliance checks, batch tracking, and regulatory quality audits.

Q5: What regulatory compliance standards does this tool support?
Using this gauge allows manufacturers to fulfill international packaging quality benchmarks required by global safety authorities, including guidelines for uniform material distribution and container pressure resistance.

Q6: What is the price range for Pacorr’s Bottle Wall Thickness Gauges?
Depending on the specific configuration, accuracy tolerances, and included accessories, models typically range from INR 90,000 to INR 5,20,000. Contact our engineering sales team for a tailored quote based on your specific testing protocols.
