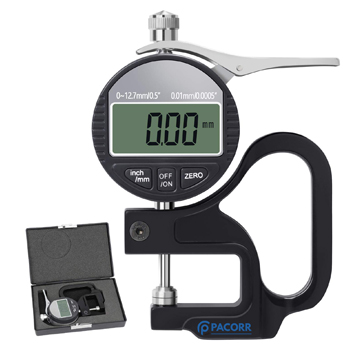

Fabric Thickness Gauge - Digital

Fabric Thickness Gauge is a device used to measure the thickness of fabrics and other materials. This machine is widely used in the textile industry for quality control, research and development, and material testing purposes.

The Fabric Thickness Gauge works by placing a fabric sample between two flat surfaces and applying a controlled amount of pressure. The machine then measures the distance between the surfaces to determine the fabric's thickness. This measurement can be done on a single layer of fabric or on multiple layers to determine the overall thickness of a product.

5 of 5

Shipping Area: All over the world
Model: PCFTT-01
Brand: Pacorr
Availability: In Stock

Overview
Specifications
Reviews

The benefits of using a Fabric Thickness Gauge are numerous. This device can provide important information on the thickness and density of fabrics, which can affect their performance and suitability for specific applications. For example, the thickness of a fabric may affect its insulating properties, its durability, and its ability to be sewn or manipulated in manufacturing.

Range of measurement : 0 - 10 mm
Least count of dial gauge : 0.01 mm
Diameter of anvil : 60 mm
Diameter of pressure foot : 9.5 mm & 28.7 mm
(Interchangeable)
Throat depth : 22 mm
Depth : 150 mm
Display Type : Digital.
Digital thickness gauge : Feather touch LCD display with tare/reset switch.
Suitable Fabrics : knitted, Napped Blanket, Oven and air bag.
Uses/Application : Textile Industry.

STANDARD ACCESSORIES:

Main Unit (with 10 mm pressure foot fitted) : 01 No.
Maximum capacity : 10mm
Accuracy : 0.01mm.
Gauge : Digital
Pressure Foot (Dia. 28.7 mm) : 01 No.
Pressure Foot (Dia. 9.5 mm) : 01 No.
Allen Key - 2 mm (for calibration) : 01 No.
The User Manual : 01 No.
Inspection & Conformance certificate : 01 No.
Calibration Certificate : 01 No.

Standard Accessories:

Main unit : 01 Nos.
Pressure foot : 01+01 Nos.
Warranty certificate : 01 Nos.
User’s Manual : 01 Nos.
Calibration Certificate (NABL) : 01 Nos.
