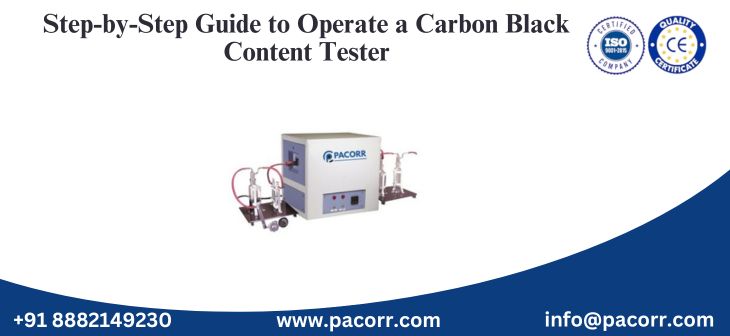

Step-by-Step Guide to Operate a Carbon Black Content Tester

Pacorr's Carbon Black Content Tester is an essential tool for accurately measuring the concentration of carbon black in various polymers. As carbon black is often used in plastics, rubbers, and other materials to improve properties like durability, color, and UV protection, ensuring its proper concentration is crucial for achieving desired product performance. This step-by-step guide will provide detailed instructions on how to use Pacorr's Carbon Black Content Tester, offering a clear understanding of the process, key considerations, and best practices for reliable results. Whether you're in the polymer, rubber, or plastics industry, knowing how to operate this tester is essential for maintaining quality control and meeting industry standards.

What is a Carbon Black Content Tester?

A Carbon Black Content Tester is a specialized instrument used to determine the amount of carbon black present in a material, typically a polymer or rubber compound. Carbon black is added to these materials for reinforcement, color, and UV protection, but an excessive or insufficient amount can negatively affect the material's properties. The tester uses a controlled heating process to separate the carbon black from the sample and quantify its concentration.

Pacorr's Carbon Black Content Tester is designed for high precision and accuracy, ensuring that the results obtained are reliable and repeatable. It plays a crucial role in quality control processes, helping manufacturers meet the required specifications for their products.

Preparation Before Operating the Tester

Before using the Carbon Black Content Tester, it is essential to prepare both the equipment and the sample to ensure accurate testing results.

1. Calibration and Inspection:
   • Ensure that the tester is properly calibrated according to the manufacturer’s instructions.
   • Check for any signs of wear or damage to the machine.
   • Verify that the test chamber is clean and free from any residue or contaminants.
2. Sample Preparation:
   • Select the sample material that needs testing. The sample should be homogeneous, free from contamination, and representative of the material batch you intend to test.
   • Weigh the sample carefully and record its weight.
   • Make sure the sample is cut into uniform pieces to ensure consistency in testing.
3. Safety Precautions:
   • Always wear the appropriate safety gear, including gloves, safety glasses, and lab coats.
   • Follow all manufacturer-recommended safety guidelines to avoid exposure to potentially harmful fumes and chemicals.

Step 1: Setting Up the Carbon Black Content Tester

To begin the test, follow these steps:

1. Power On the Equipment:
   • Ensure the Carbon Black Content Tester is connected to a power source and turned on.
   • Wait for the machine to complete its startup process and be ready for use.
2. Set the Temperature:
   • Set the appropriate temperature according to the sample type and testing method. Pacorr’s tester is typically equipped with an adjustable heating system to accommodate different testing requirements.
   • The temperature should be set based on the guidelines provided for your material, as different samples require different conditions for optimal results.
3. Insert the Sample into the Test Chamber:
   • Place the pre-weighed sample into the test chamber. Be sure to secure it properly to avoid any shifting during the test process.
   • Close the chamber door securely to ensure an airtight seal during the heating process.

Step 2: Testing the Sample

Once the sample is prepared and the tester is set up, proceed with the testing procedure:

1. Start the Test:
   • Initiate the test by pressing the start button on the control panel. The machine will begin the heating process, gradually raising the temperature to the specified level.
   • As the sample is heated, the carbon black content will separate from the other components of the material, allowing the tester to detect and measure the carbon black concentration.
2. Monitor the Process:
   • Throughout the test, keep an eye on the temperature and pressure readings displayed on the machine. Ensure that the sample is not overheating, which could lead to inaccurate results.
   • Some testers may offer real-time readings, providing an estimate of the carbon black content as the test progresses.
3. Duration of Test:
   • The test duration will vary depending on the sample type and the specific testing standards. Typically, the process can take anywhere from 30 minutes to 1 hour. The machine will notify you once the test is complete.

Step 3: Interpreting the Results

Once the test is complete, the next step is to interpret the results:

1. Read the Carbon Black Content:
   • The machine will display the final results, usually in percentage by weight, representing the amount of carbon black in the sample.
   • Pacorr’s tester often provides a clear, easy-to-read digital display that shows both the percentage and any other relevant data from the test.
2. Verify the Results:
   • It’s essential to cross-check the test results with the material’s specifications or the desired concentration of carbon black. If the test results are within the required range, the material is considered to meet the desired quality standard.
   • If the results fall outside the acceptable limits, further adjustments may need to be made to the material batch.
3. Document the Results:
   • Record the results for future reference and quality control purposes. The tester may include a data logging feature, allowing you to automatically save and export the results to your computer or database.

Step 4: Cleaning and Maintenance

After the test is complete, it is crucial to clean and maintain the Carbon Black Content Tester to ensure longevity and reliable performance:

1. Clean the Test Chamber:
   • Remove any leftover material from the test chamber and clean it thoroughly with a non-abrasive cloth. This step helps prevent contamination of future tests and ensures consistent results.
   • Use a gentle solvent, if necessary, to remove any stubborn residues.
2. Inspect the Machine:
   • Check all components of the machine for any signs of wear or damage. Pay attention to the heating system, sample holders, and control panel.
   • Perform regular maintenance as recommended in the user manual to keep the equipment in optimal working condition.
3. Store the Tester Properly:
   • Once cleaned, store the machine in a dry, clean, and safe environment to prevent dust and moisture from affecting its performance.
   • Make sure that any accessories or calibration tools are also properly stored and maintained.

Key Considerations for Accurate Testing

• Sample Consistency: Ensure that all samples are homogenous and properly prepared for consistent and reliable results.
• Temperature Control: Precise temperature control is critical to achieving accurate results. Always follow the recommended temperature settings for the specific material being tested.
• Routine Calibration: Regularly calibrate your Carbon Black Content Tester to ensure the most accurate readings. Calibration should be performed as per the manufacturer’s guidelines.
• Proper Maintenance: Regular cleaning and maintenance of the tester will help prolong its lifespan and maintain the accuracy of the results.

Conclusion

Operating Pacorr’s Carbon Black Content Tester is a straightforward process that, when done correctly, ensures precise and reliable measurement of carbon black concentration in materials. By following the steps outlined in this guide, you can ensure that your materials meet quality standards and specifications. Consistent testing using this reliable equipment will help maintain high product quality and consistency, ensuring that your polymer, rubber, or plastic materials perform as intended.

Whether you're involved in the production of plastics, rubbers, or other carbon black-infused materials, the Pacorr Carbon Black Content Tester is an invaluable tool that supports quality control and meets industry standards for product excellence.

By adhering to best practices and proper operational steps, you can achieve accurate results that align with your material requirements, ensuring quality and consistency in your production processes.
