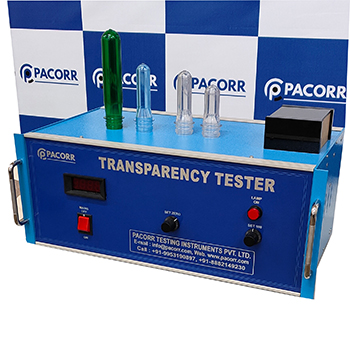

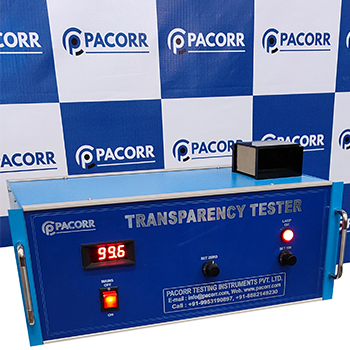

Transparency Tester

What is a Transparency Tester?

A Transparency Tester is a laboratory instrument used to determine how much light passes through a transparent or semi-transparent plastic specimen. The result is displayed as a percentage, where a higher value generally indicates greater light transmission.

The instrument is useful for evaluating the clarity consistency of PET packaging materials. Variations in transparency may occur due to resin quality, contamination, incorrect processing temperature, crystallisation, uneven wall thickness or improper masterbatch mixing. Pacorr Transparency Tester helps quality-control teams compare production samples with approved reference samples. It provides objective test results instead of relying only on visual inspection.

Working Principle
The instrument works by directing a controlled light source through the prepared test specimen. A light-sensitive detector measures the amount of light transmitted through the sample. Before testing, the instrument is set or calibrated using the reference condition. The specimen is then placed in the sample area, and the transparency value is shown on the digital display.

For reliable comparison, all specimens should be clean, properly prepared and tested in the same position and orientation.

Key Features

• Digital transparency measurement
• Measuring range from 0.0 to 100.0%
• Resolution of 0.1%
• Simple calibration and operation
• Compact laboratory design
• Repeatable sample positioning
• Suitable for transparent plastic materials
• Powder-coated aluminium body
• Useful for production and incoming-material inspection
• Low-maintenance testing system

Applications
The Transparency Tester can be used for testing prepared specimens from:

• PET bottles
• PET preforms
• Transparent plastic containers
• Plastic packaging sheets
• Pharmaceutical bottles
• Food and beverage packaging
• Cosmetic containers
• Polymer and resin samples

Benefits of Using a Transparency Tester
The instrument helps manufacturers maintain consistent product appearance across different production batches. It can detect changes in clarity caused by material contamination, processing variation or inconsistent resin quality. Regular transparency testing also supports supplier comparison, process control and rejection analysis. Digital results make it easier to maintain quality records and define acceptable transparency limits for different packaging products.

The tester is particularly useful where container clarity directly influences product presentation and customer acceptance.

Test Procedure

1. Switch on the instrument and allow the system to stabilise.
2. Prepare a clean and flat specimen of the required size.
3. Remove dust, fingerprints and moisture from the sample.
4. Calibrate the instrument according to the operating instructions.
5. Place the specimen correctly in the testing area.
6. Record the transparency percentage shown on the display.
7. Test multiple locations when checking bottle-wall uniformity.
8. Compare the average result with the approved quality limit.

Why Choose Pacorr Transparency Tester?
Pacorr manufactures testing instruments for packaging, plastics and industrial quality-control applications. The Transparency Tester is designed for simple operation, consistent measurement and routine laboratory use.

Customers can contact Pacorr for instrument configuration, technical specifications, pricing, calibration requirements and product demonstrations.

Frequently Asked Questions
Q1. What does a Transparency Tester measure?
It measures the percentage of light transmitted through a transparent or semi-transparent specimen.

Q2. Can it test PET bottles?
Prepared specimens taken from PET bottle walls can be tested. The sample should match the required specimen size and holder configuration.

Q3. What is the measuring range?
The instrument provides transparency readings from 0.0 to 100.0%.

Q4. What is the resolution of the instrument?
The least count or display resolution is 0.1%.

Q5. Why do PET bottles show different transparency values?
Differences may result from resin quality, contamination, crystallisation, processing temperature, wall thickness or masterbatch concentration.

Q6. How should the specimen be prepared?
The specimen should be clean, flat, free from scratches and prepared to the specified dimensions.

Q7. Is transparency the same as haze?
No. Transparency indicates light transmission, while haze measures the scattering of light that creates a cloudy appearance.

Q8. How can I get the Transparency Tester price?
The price depends on the selected configuration, sample holder and calibration requirements. Contact Pacorr for a quotation.

Contact Pacorr
For pricing, technical details or a product demonstration, contact Pacorr Testing Instruments Pvt. Ltd.
