Flip Cap Opening Force Tester for FT Caps | Technical Specifications

Pacorr offers a reliable Flip Cap Opening Force Tester for FT Caps to help packaging manufacturers measure the force required to open flip-top closures. FT caps are commonly used on bottles for shampoo, cosmetics, edible oils, sauces, pharmaceutical liquids and household products. Although these closures appear simple, their opening performance directly affects product safety and customer convenience.

A cap that opens with very little force may release accidentally during transportation, while an excessively tight cap can be uncomfortable for the consumer. Measuring the opening force helps manufacturers maintain a practical balance between secure sealing and easy operation.

What Is a Flip Cap Opening Force Tester?

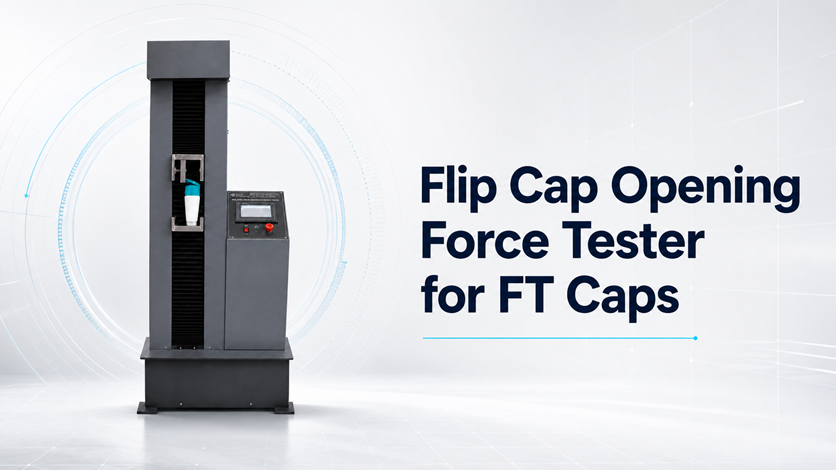

A Flip Cap Opening Force Tester is a precision instrument used to measure the maximum force required to lift and open an FT cap from its locked position. The bottle or closure is held firmly in a specially designed fixture, while a motorized mechanism pulls the flip lid at a controlled speed.

The integrated load cell records the peak opening force and displays the result in units such as Newton or kilogram-force. Repeated testing allows quality teams to compare caps from different production batches, mould cavities, materials or suppliers.

Why Should FT Caps Be Tested?
The opening force of a flip cap can change due to variations in resin quality, hinge thickness, mould temperature, cooling conditions, cap dimensions and bottle-neck design. Even a small manufacturing variation can make the closure too loose or too difficult to open.

Regular testing helps manufacturers:

• Maintain consistent opening performance
• Detect moulding and dimensional variations
• Prevent accidental cap opening and leakage
• Improve consumer convenience
• Evaluate caps supplied by different vendors
• Support product development and batch approval
• Reduce rejection, complaints and packaging waste

How Does the Tester Work?
The capped bottle is placed in an adjustable holding fixture. A hook or customized gripping attachment is connected to the flip lid. Once the test begins, the motorized system pulls the lid upward at a uniform speed.

During movement, the load cell continuously measures the applied force. The highest force required to unlock the lid is recorded as the peak opening force. This result can then be compared with the manufacturer’s approved tolerance range.

Because cap designs vary, the gripping fixture should match the actual cap diameter, hinge position and bottle shape. Pacorr can develop customized fixtures based on the customer’s FT-cap samples.

Typical Technical Specifications

The final load-cell capacity, test speed, fixture and reporting options are selected according to the expected opening-force range and sample design.

Applications
The equipment is suitable for closure manufacturers, bottle suppliers, packaging-development centres and quality-control laboratories. It can be used for FT caps fitted to:

• Shampoo and conditioner bottles
• Cosmetic and personal-care containers
• Edible-oil, sauce and syrup bottles
• Pharmaceutical and healthcare packaging
• Detergent and liquid-cleaner containers
• Lubricant and automotive-fluid bottles

Available Model and Price
The Flip Cap Opening Force Tester price depends on the load-cell capacity, cap fixture, control system, data-recording features and level of customization. Since bottle and cap designs differ, selecting a machine only by general specifications may produce unreliable results.

To receive the correct model recommendation and quotation, customers should share the cap diameter, bottle dimensions, expected opening-force range, sample photographs and required reporting format. A physical sample may also be requested for fixture development and testing confirmation.

Pacorr provides application-based testing solutions to help packaging companies achieve accurate measurement, consistent product quality and better closure performance.

For technical specifications, available models or a price quotation, contact Pacorr:
